Product Detailed Parameters
- Description：FPAC RAIL FILTER 3PH 1ST 32A 520
- Series：FPAC RAIL
- Mfr：SCHURTER Inc.
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：32 A
- Frequency - Operating：50/60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：ENEC, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：DIN Rail
- Termination Style：Screw Clamp
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：300 V
- Voltage - Rated AC (Phase to Phase)：520 V
Download product information
Overview

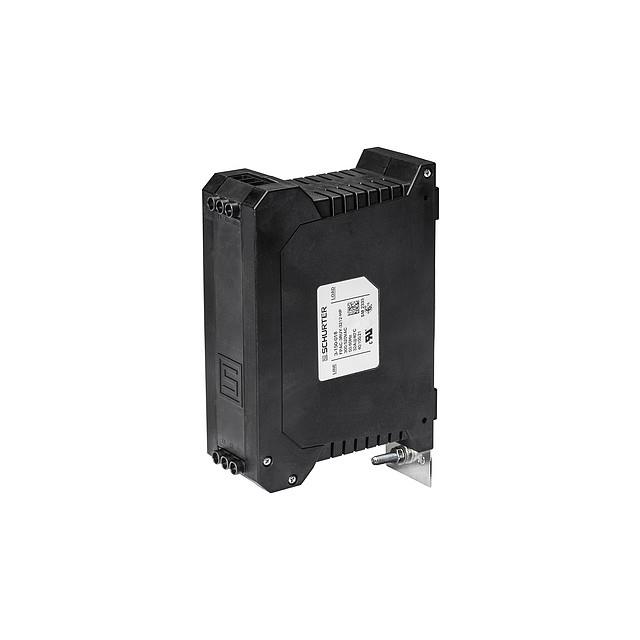

The SCHURTER Inc. model 3-150-018 is a three-phase (Delta) EMC/EMI line filter module designed for industrial applications. It features a single-stage filtering configuration with a rated current of 32 A at 50/60 Hz and operates at voltages up to 520 V AC. The unit utilizes screw clamp terminals for secure electrical connections and is constructed as a rail-mounted filter component. This device provides high attenuation capabilities to suppress electromagnetic interference in power distribution systems.
Feature Summary
- Provides high attenuation for electromagnetic interference suppression
- Designed for three-phase Delta power network configurations
- Utilizes screw clamp terminal connection method
Applications
- Industrial power distribution systems requiring EMI suppression
- Three-phase equipment protection against conducted noise
- Rail-mounted installation in control cabinets
Procurement Notes
Verify the specific voltage rating of 520 V AC and current capacity of 32 A against system requirements. Confirm the three-phase Delta topology compatibility. Ensure the screw clamp terminal type matches existing wiring infrastructure. Check RoHS compliance status if required by project specifications.
Selection Notes
Select this component when a single-stage solution is sufficient for the intended noise reduction levels. Consider the physical dimensions for rail mounting space availability. Evaluate the thermal performance characteristics relative to the expected ambient operating conditions and continuous load currents within the 32 A limit.
Part Context
This component belongs to the FPAC series of rail filters manufactured by SCHURTER Inc. The series focuses on providing compact, high-performance electromagnetic interference filtering solutions for industrial environments. These modules are engineered for reliable operation in demanding power electronics applications.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify technical equivalence carefully before considering alternative models from other manufacturers.
