3-1609037-0

Overview

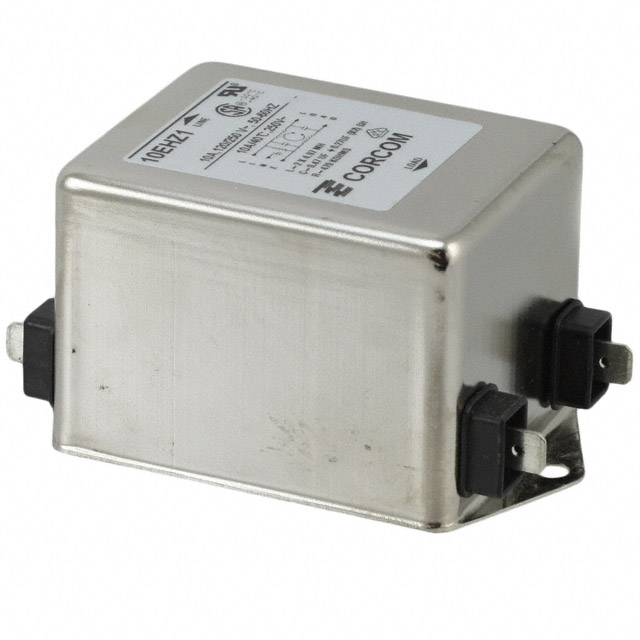

The TE Connectivity Corcom Filters 3-1609037-0 is a single-phase EMC/EMI power line filter designed for chassis mounting. It features a rated voltage of 250VAC and a current rating of 10A at 50/60Hz. The unit utilizes quick connect terminals for circuit integration and provides single-stage filtering configuration. Key electrical specifications include a minimum inductance of 4.97mH, ensuring effective noise suppression for sensitive electronic equipment within standard industrial operating temperature ranges.

Feature Summary

• Provides single-stage EMI/RFI noise attenuation for AC power lines
• Designed for secure chassis mounting applications
• Utilizes quick connect terminal style for simplified wiring

Applications

• Industrial control panels requiring EMI suppression
• Medical equipment power input stages
• Commercial machinery noise reduction

Procurement Notes

Verify the specific datasheet version to confirm compliance with current regional safety standards such as UL or VDE before finalizing procurement. Ensure that the quick connect terminal dimensions match the mating connector requirements on the target PCB or busbar system. Confirm that the 10A continuous current rating aligns with the maximum load expectations of the application circuit to prevent thermal degradation.

Selection Notes

Select this component when a single-phase, single-stage solution is sufficient for the required noise attenuation levels. Compare the 4.97mH inductance value against the specific frequency range of interference present in the environment. Verify that the chassis mount form factor fits within the available enclosure space constraints compared to panel mount alternatives.

Part Context

This part belongs to the TE Connectivity Corcom Filters portfolio, which specializes in electromagnetic interference suppression components. The 3-1609037-0 designation identifies a specific variant within the broader power line filter category, distinguished by its 10A capacity and single-stage architecture suitable for general-purpose AC line conditioning.

Replacement Considerations

Direct substitutes must maintain the 10A current rating, 250VAC voltage rating, and quick connect terminal interface. Verify that any alternative component offers comparable inductance values to ensure equivalent noise filtering performance without altering the physical mounting footprint.
