3-1609037-2

Overview

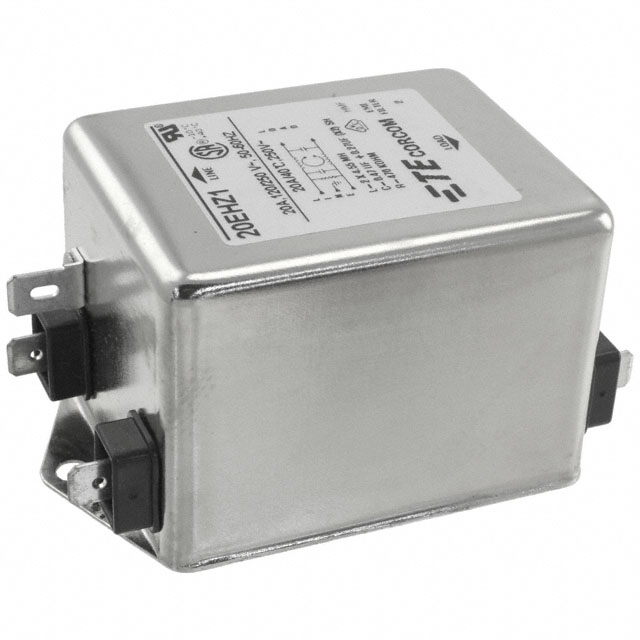

The TE Connectivity Corcom Filters part number 3-1609037-2 is a single-phase EMC/EMI line filter belonging to the HZ series. It is rated for a maximum current of 20 A and an AC voltage of 250V at 50/60Hz operating frequencies. The device features a single-stage configuration with flange mounting and utilizes .250" Faston terminals for both input and output connections.

Feature Summary

• Designed specifically for medical applications to provide effective attenuation of RFI noise
• Features a single-stage filtering configuration for electromagnetic interference suppression

Applications

• Medical equipment requiring RFI noise attenuation

Procurement Notes

Verify the exact terminal dimensions and flange specifications against the official datasheet before integration. Confirm that the single-stage performance meets the specific EMI requirements of the target application. Ensure compatibility with the 250VAC rating and 20A continuous current load during system design validation.

Selection Notes

Select this component when high-performance RFI suppression is required for medical devices. The HZ series is optimized for these sensitive environments. Ensure the single-stage topology provides sufficient attenuation compared to multi-stage alternatives if higher filtration is needed.

Part Context

This component is part of the Corcom HZ series, which is engineered for high-performance applications in the medical sector. It serves as a specialized solution for managing electromagnetic interference in critical systems where signal integrity and safety are paramount.

Replacement Considerations

FN8357 is listed as an alias or similar substitute for this part number.
