3-1609037-3

Overview

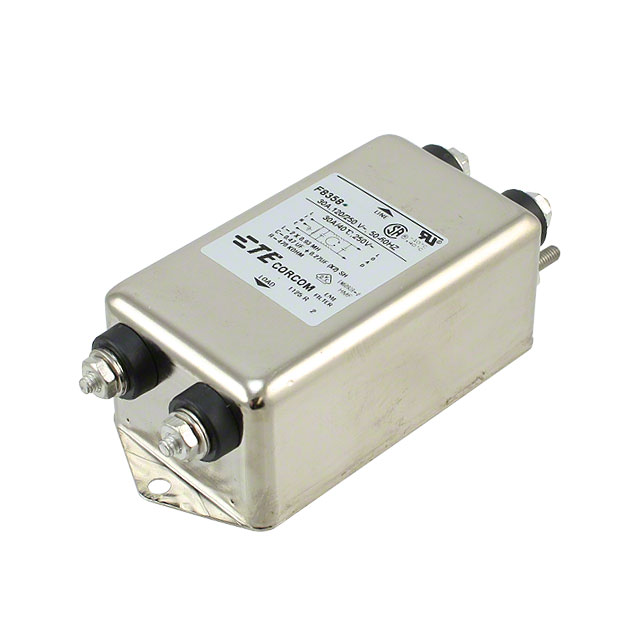

The TE Connectivity Corcom Filters model 3-1609037-3 is a single-phase EMC/EMI power line filter designed for general-purpose applications. It supports a rated current of 30 A at 250 VAC and operates within the 50/60 Hz frequency range. The unit features a single-stage filtering configuration with an inductance of 900 µH. Installation is achieved via chassis mounting using threaded posts sized 8-32.

Feature Summary

• Provides electromagnetic interference suppression through single-stage filtering
• Designed for high-current single-phase power line protection
• Utilizes threaded post termination for secure mechanical attachment

Applications

• General purpose electronic equipment requiring EMI suppression
• Medical industry power systems
• Industrial control panels

Procurement Notes

Verify the specific datasheet version to confirm compliance with current safety standards such as UL 1283 or IEC 60939. Ensure that the required threaded post hardware matches the 8-32 specification. Confirm that the 30 A rating aligns with the system's maximum load requirements before finalizing procurement.

Selection Notes

Select this component when a single-phase filter capable of handling 30 A is required. The 900 µH inductance value indicates suitability for moderate noise attenuation needs. Verify that the chassis mounting style fits the enclosure design constraints compared to panel mount alternatives.

Part Context

This part belongs to the TE Connectivity Corcom Filters portfolio, which specializes in RFI power line filters. The manufacturer offers a broad range of solutions for various industries, including dedicated medical industry filter portfolios. This specific model represents a standard industrial-grade solution within their broader catalog.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the official Corcom EMI/RFI Filter Selector Chart for potential equivalent models within the same series.
