3-1609037-5

Overview

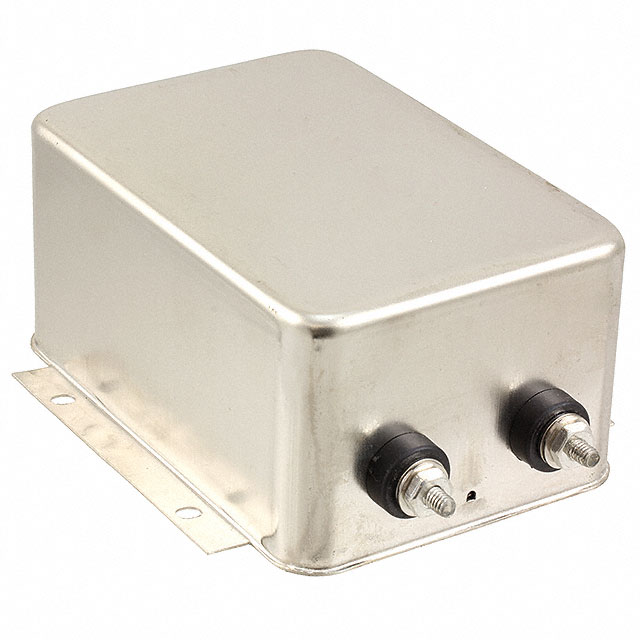

The TE Connectivity Corcom Filters 3-1609037-5 is a medical-grade power line filter designed for EMI/RFI suppression. It features a bulkhead mounting style and supports a rated current of 20A at 250VAC. This component belongs to the HQ series, specifically engineered for applications requiring robust noise filtration in sensitive medical environments.

Feature Summary

• Medical application specific design
• Bulkhead mounting configuration
• EMI/RFI power line filtering

Applications

• Medical equipment power conditioning

Procurement Notes

Verify the exact datasheet version with the manufacturer before integration. Confirm that the bulkhead mounting interface matches the chassis cutout dimensions. Ensure the 20A rating aligns with the system's maximum load requirements under all operating conditions.

Selection Notes

Select this model when medical compliance and bulkhead installation are required. The 20A capacity suits high-power medical devices. Compare against standard chassis mount filters if space constraints differ. Verify insulation and leakage current specifications against specific medical safety standards.

Part Context

This part belongs to the Corcom HQ series, which focuses on specialized filtering solutions. It distinguishes itself from general-purpose filters through its dedicated medical application focus and distinct bulkhead physical form factor, ensuring secure panel integration.

Replacement Considerations

No public substitute part numbers are confirmed in the provided documentation.
