3-1609037-8

Overview

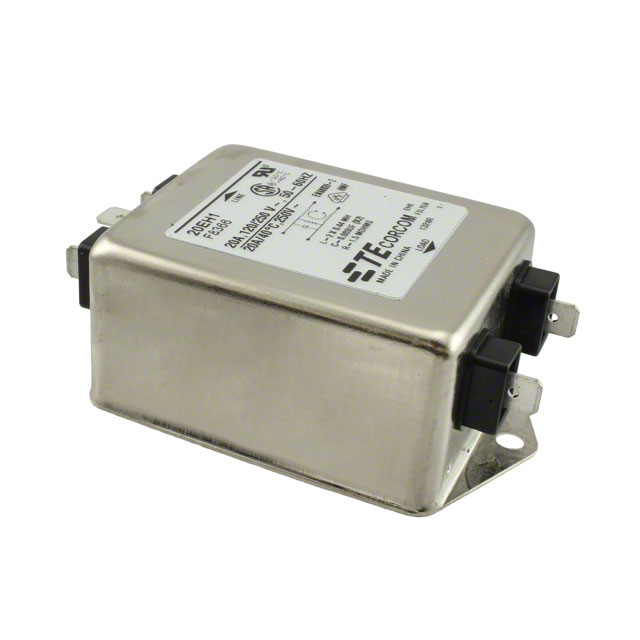

The TE Connectivity Corcom Filters 3-1609037-8 is a single-phase EMC/EMI line filter rated for 20 A at 250 VAC, operating at 50/60 Hz. It features a two-element circuit design and chassis mount installation with quick connect terminals. The unit exhibits minimal leakage current, specified as 0.002 mA maximum at 120VAC 60Hz and 0.005 mA maximum at 250VAC 50Hz.

Feature Summary

• Two-element circuit provides EMI attenuation
• Minimal leakage current suitable for sensitive equipment
• Quick connect terminal style for easy installation

Applications

• Dialysis machines
• Medical lasers
• Diagnostic equipment
• Dentist equipment
• Operating room equipment

Procurement Notes

Verify the specific part number against official TE Connectivity documentation to confirm availability and lead times. Ensure the application environment matches the operational temperature range of -10 to 40°C. Confirm that the quick connect terminal type aligns with the system wiring requirements before procurement.

Selection Notes

Select this component when high current capacity of 20 A is required in a single-phase configuration. The low leakage current specification makes it appropriate for medical applications where safety standards are strict. Verify that the chassis mount form factor fits the enclosure design constraints.

Part Context

This component belongs to the Corcom H series of power inlet filters from TE Connectivity. The series is engineered for straightforward connection and installation processes. It serves as a specialized solution for electromagnetic interference suppression in critical infrastructure and medical devices requiring reliable power filtering.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
