3-1609037-9

Overview

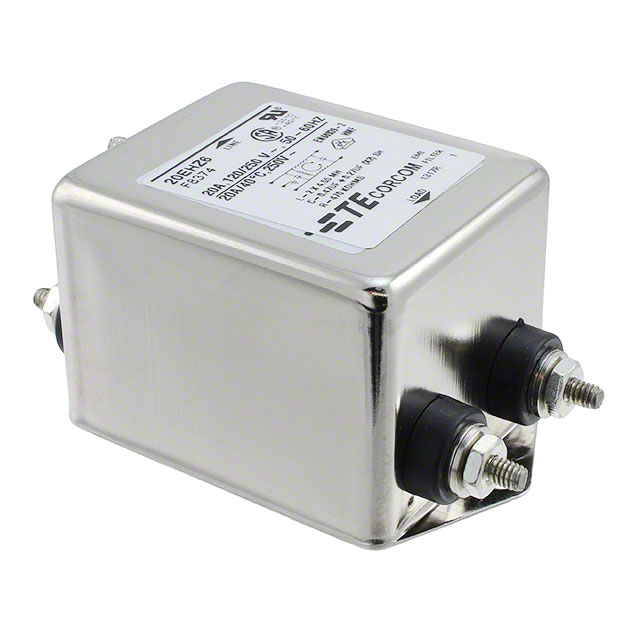

The TE Connectivity Corcom Filters part number 3-1609037-9 is a single-phase EMC/EMI power line filter rated for 20 A at 250 VAC and 50/60 Hz. It features a single-stage configuration with threaded terminal connections (8-32). Designed for medical applications, it supports 1500 VAC and 1450 VDC isolation voltages. The unit utilizes bulkhead mounting and holds CSA approvals.

Feature Summary

• Single-stage EMI/RFI filtering for power lines
• Medical application design with high isolation voltage
• Bulkhead mounting style

Applications

• Medical equipment power supply filtering

Procurement Notes

Verify the specific insulation requirements against the 1500 VAC and 1450 VDC ratings provided in the product specifications. Confirm that the 8-32 threaded terminals match the system interface. Ensure the bulkhead mounting dimensions are compatible with the enclosure design before procurement.

Selection Notes

Select this component when medical-grade isolation is required alongside standard 20 A single-phase filtering. The high voltage rating distinguishes it from general-purpose filters. Verify compatibility with the 8-32 threaded connection type and bulkhead installation constraints during the design phase.

Part Context

This component belongs to the TE Connectivity Corcom Filters lineup, specifically tailored for medical applications. It provides EMI/RFI suppression for power lines while meeting stringent safety standards required in healthcare environments. The bulkhead mount ensures secure installation in medical device enclosures.

Replacement Considerations

FN2080A-10-06 by TE Connectivity Schaffner is listed as a similar substitute option.
