3-1609091-0

Overview

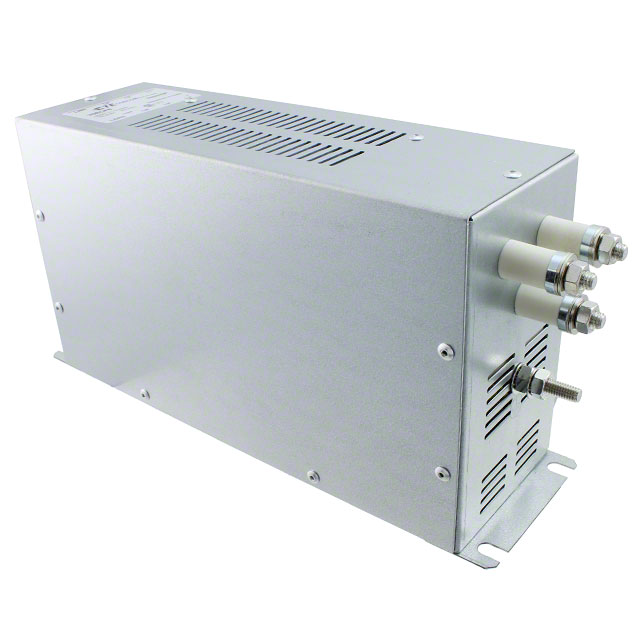

The TE Connectivity Corcom Filters model 3-1609091-0 is a three-phase (Delta) EMC/EMI line filter designed for chassis mounting. It supports a rated current of 75 A and operates at frequencies of 50/60 Hz. The unit utilizes threaded posts with an M6 specification for electrical termination. This component is engineered to reduce noise emissions associated with variable speed motors in industrial applications.

Feature Summary

• Three-phase Delta configuration for industrial power filtering
• Chassis mount installation with M6 threaded post termination
• Designed to attenuate noise from variable speed motor drives

Applications

• Variable speed motor drive systems
• Process automation equipment
• Elevator control systems

Procurement Notes

Verify the specific voltage rating requirements against the official datasheet, as sources indicate both 277V and 480V AC ratings for this part number. Confirm that the M6 threaded post termination matches the assembly hardware. Ensure the three-phase Delta configuration aligns with the system topology before procurement.

Selection Notes

Select this component when high-current three-phase filtering is required for Delta configurations. The M6 threaded post interface dictates the mechanical connection method. Consider the 75 A current capacity and 50/60 Hz operating frequency to ensure compatibility with the target motor drive or automation load specifications.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in EMI/RFI suppression solutions. The 3-1609091-0 designation identifies a specific high-current variant within the lineup, distinguished by its three-phase architecture and robust chassis-mount construction suitable for heavy-duty industrial environments.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative filters based on current rating, phase configuration, and termination style.
