Product Detailed Parameters
- Description：LINE FILTER 130A CHASSIS MOUNT
- Series：BCF
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：130 A
- Frequency - Operating：50/60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：UR, VDE
- Operating Temperature：-10°C ~ 50°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M10)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：277 V
- Voltage - Rated AC (Phase to Phase)：480 V
Download product information
Overview

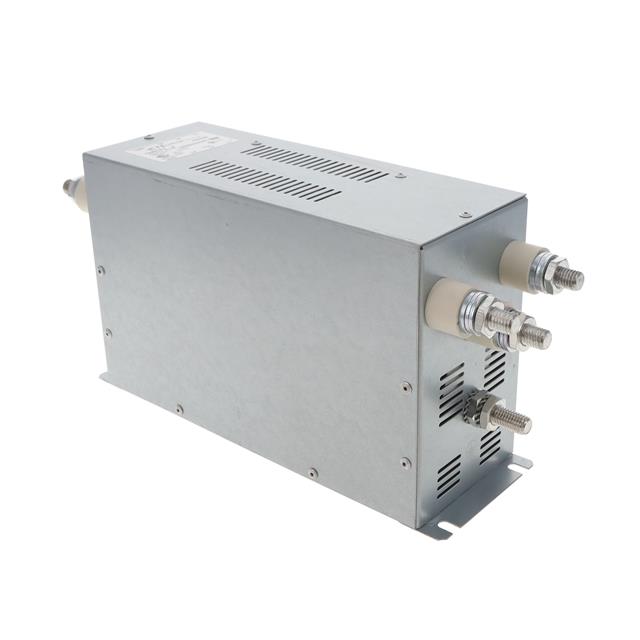

The TE Connectivity Corcom Filters 3-1609091-2 is a three-phase Delta EMC/EMI power line filter designed for industrial applications. It supports a rated current of 130 A at AC 50/60Hz frequencies. The unit features a two-stage filtering configuration to ensure effective noise suppression. Termination is provided via M10 threaded posts, facilitating secure mechanical and electrical connections. This component is engineered for chassis mounting within power distribution systems.
Feature Summary
- Provides two-stage electromagnetic interference suppression for three-phase delta circuits
- Utilizes M10 threaded post terminals for robust connection integrity
- Engineered for high-current industrial power line conditioning
Applications
- Industrial power distribution panels
- Three-phase motor drive systems
- Heavy machinery power supplies
Procurement Notes
Verify the specific datasheet version and terminal specifications before integration. Confirm that the M10 threaded post requirements align with the target chassis design. Ensure the 130A current rating meets the operational load demands of the intended circuit application.
Selection Notes
Select this model for three-phase delta configurations requiring high current handling capabilities. The M10 termination style is suitable for heavy-duty industrial environments where secure mechanical locking is critical. Evaluate the two-stage architecture against specific EMI attenuation requirements for the installation site.
Part Context
This component belongs to the TE Connectivity Corcom Filters product line, specializing in power line conditioning solutions. The series focuses on providing reliable EMI/RFI suppression for demanding industrial power applications, ensuring compliance with electromagnetic compatibility standards.
Replacement Considerations
Consult official substitution charts for verified equivalent models. Cross-reference technical parameters such as current rating, phase configuration, and terminal type to ensure functional compatibility.
