Description：LINE FILTER 180A CHASSIS MOUNT
Series：BCF
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:ddaeebc7b458 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 180A CHASSIS MOUNT
Series：BCF
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：180 A
Frequency - Operating：50/60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：UR, VDE
Operating Temperature：-10°C ~ 50°C
Mounting Type：Chassis Mount
Termination Style：Threaded Post (M10)
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：277 V
Voltage - Rated AC (Phase to Phase)：480 V

Download product information

3-1609091-3

Overview

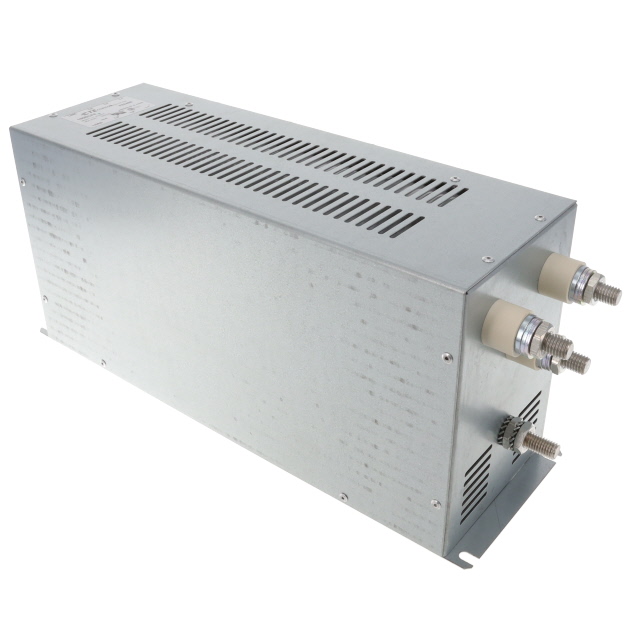

The TE Connectivity Corcom Filters model 3-1609091-3 is a three-phase (Delta) EMC/EMI line filter designed for chassis mounting. It supports a rated current of 180 A at 50/60 Hz and operates with a voltage rating of 277 VAC. The component features a two-stage filtering configuration to suppress electromagnetic interference. Electrical connections are established via threaded M10 posts, ensuring secure attachment in high-current industrial applications.

Feature Summary

Provides two-stage EMI/RFI suppression for three-phase Delta power systems
Utilizes robust M10 threaded post terminals for high-current connectivity
Engineered for direct chassis mounting in industrial environments

Applications

Industrial motor drives and control panels
Three-phase power distribution units
Heavy machinery power supplies

Procurement Notes

Verify the specific terminal configuration matches the M10 threaded post requirement before integration. Confirm that the 180 A current rating and 277 VAC voltage specifications align with the target system's electrical parameters. Ensure the chassis mounting footprint accommodates the physical dimensions of this three-phase unit during mechanical design.

Selection Notes

Select this component when a three-phase Delta configuration is required rather than Wye. The 180 A rating dictates suitability for heavy-duty industrial loads. Verify that the available panel space supports the chassis mount form factor and that the M10 terminal style is compatible with the existing busbar or cable assembly infrastructure.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for commercial and industrial use. The 3-1609091-3 designation specifically identifies the three-phase variant within the broader product family, distinguishing it from single-phase models by its phase count and higher current handling capabilities.
