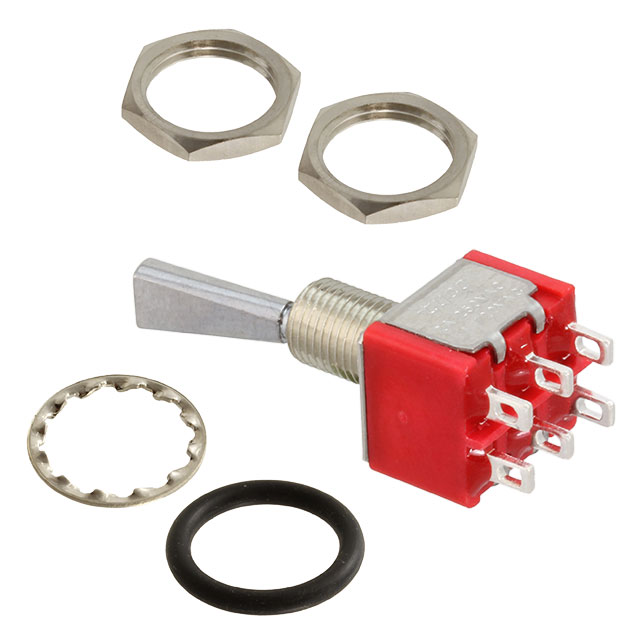

Toggle Switches 3-1825139-2 product image

3-1825139-2

Description：SWITCH TOGGLE SP3T 5A 120V
Series：Gemini A
Mfr：TE Connectivity ALCOSWITCH Switches
Package：Bulk

SKU:4204e5a14381 Category: Toggle Switches Brand: TE Connectivity ALCOSWITCH Switches

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

3-1825139-2 is listed in the Toggle Switches range at ChipApex. The manufacturer field lists TE Connectivity ALCOSWITCH Switches. Its product description is SWITCH TOGGLE SP3T 5A 120V. Review the specifications below when checking this part for your BOM.

Toggle Switches specifications for 3-1825139-2

Description：SWITCH TOGGLE SP3T 5A 120V
Series：Gemini A
Mfr：TE Connectivity ALCOSWITCH Switches
Package：Bulk
Mounting Type：Panel Mount
Circuit：SP3T
Switch Function：On-On-On
Current Rating (Amps)：5A (AC/DC)
Voltage Rating - AC：120 V
Voltage Rating - DC：28 V
Actuator Type：Flatted
Actuator Length：12.29mm
Illumination：Non-Illuminated
Illumination Type, Color：-
Illumination Voltage (Nominal)：-
Termination Style：Solder Lug
Panel Cutout Dimensions：Circular - 6.35mm Dia
Bushing Thread：1/4-40
Ingress Protection：-
Features：Jumper needed to achieve triple throw
Operating Temperature：-30°C ~ 85°C

Toggle Switches datasheet and documents for 3-1825139-2
