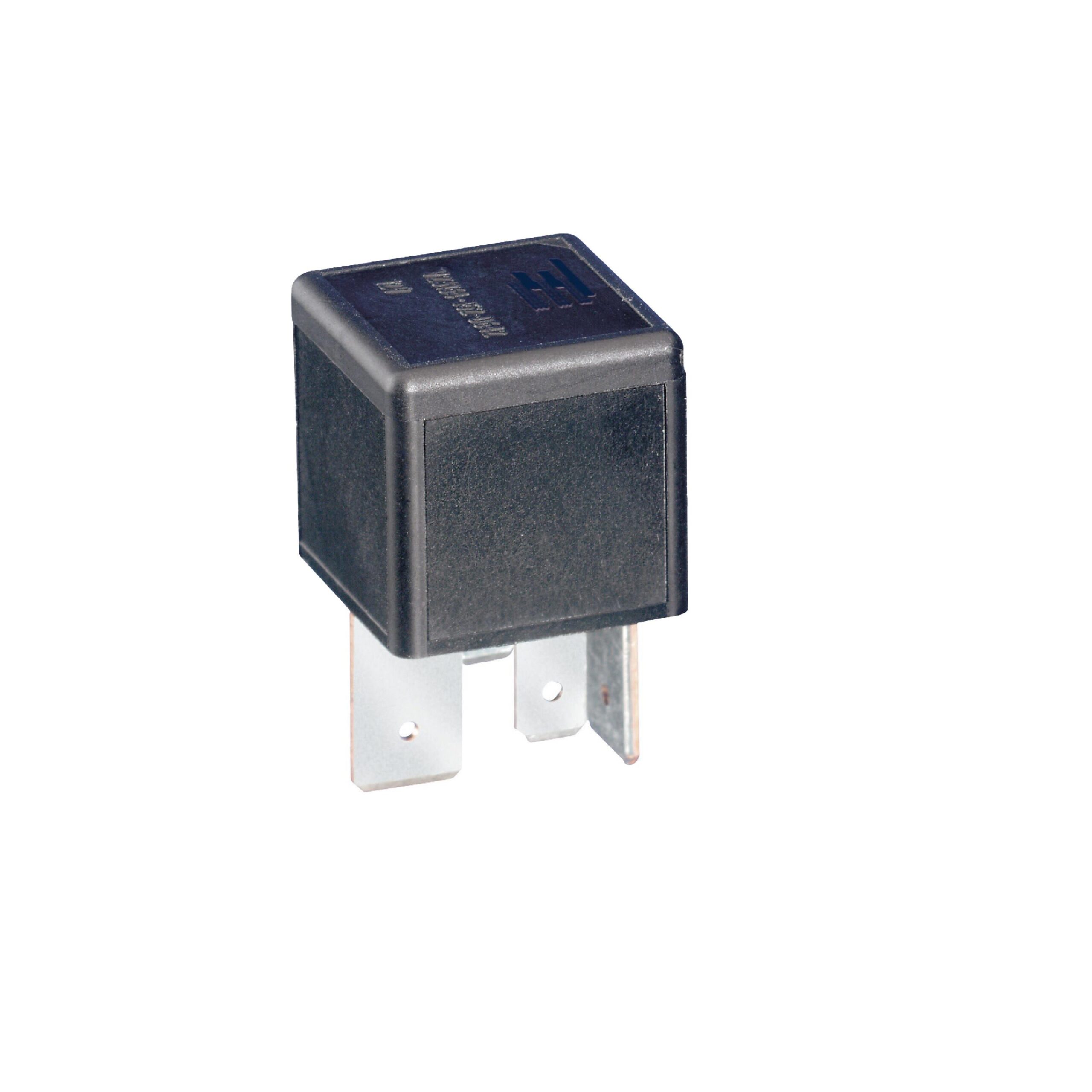

3-1904117-4

Product Detailed Parameters

• Description：RELAY GEN PURPOSE SPST 70A 24V
• Series：F7
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Bulk
• Mounting Type：Socketable
• Coil Voltage：24VDC
• Contact Form：SPST-NO (1 Form A)
• Contact Rating (Current)：70 A
• Switching Voltage：-
• Load - Max Switching：-
• Coil Current：83.3 mA
• Coil Type：Non Latching
• Features：Resistor
• Termination Style：Plug In
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：16 VDC
• Must Release Voltage：4 VDC
• Operating Temperature：-40°C ~ 125°C
• Contact Material：Silver Alloy
• Approval Agency：-
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：7 ms
• Release Time：2 ms
