3-6609974-3

Overview

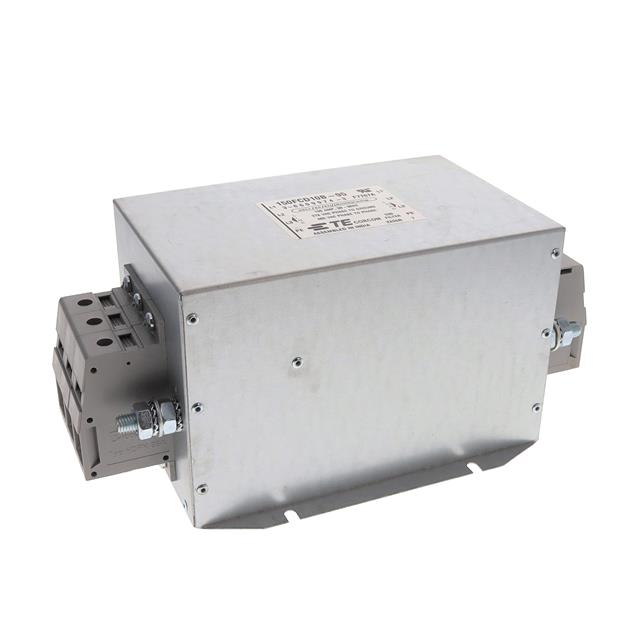

The TE Connectivity Corcom Filters part number 3-6609974-3 is a three-phase (Delta) EMC/EMI line filter module designed for chassis mounting. It features a single-stage configuration with terminal block termination, supporting a rated current of 150 A at 50/60 Hz frequencies.

Feature Summary

• Three-phase Delta topology for industrial power applications
• Single-stage EMI/RFI filtering architecture
• Terminal block connection style for secure wiring

Applications

• Industrial machinery power conditioning
• Three-phase motor drive systems
• Heavy-duty equipment noise suppression

Procurement Notes

Verify the specific electrical ratings and physical dimensions against the official datasheet before integration. Confirm that the terminal block type matches your assembly requirements. Ensure the chassis mounting method aligns with your enclosure design specifications to guarantee proper installation and performance.

Selection Notes

Select this component when a three-phase Delta configuration is required for high-current applications up to 150 A. The single-stage design offers a balance between filtering performance and size constraints. Verify compatibility with your system's voltage levels and frequency range to ensure effective electromagnetic interference mitigation.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, specializing in power line filters for industrial environments. The product line provides various configurations for different phase requirements and current capacities, ensuring reliable operation in demanding electrical systems.

Replacement Considerations

FN2080A-150-3-TE Connectivity Schaffner is listed as a similar replacement option.
