300HBT2R06

$1.20

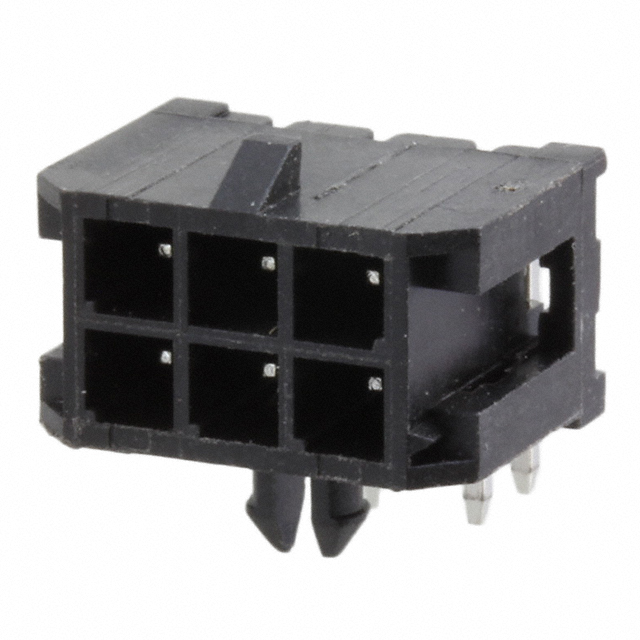

Description：CONN HEADER R/A 6POS 3MM
Series：-
Mfr：On Shore Technology Inc.
Package：Bulk

SKU:7cde6470b048 Category: Headers, Male Pins Brand: On Shore Technology Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

300HBT2R06 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists On Shore Technology Inc.. Its product description is CONN HEADER R/A 6POS 3MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 300HBT2R06

Description：CONN HEADER R/A 6POS 3MM
Series：-
Mfr：On Shore Technology Inc.
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.118" (3.00mm)
Number of Positions：6
Number of Rows：2
Row Spacing - Mating：0.118" (3.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.126" (3.20mm)
Overall Contact Length：-
Insulation Height：0.290" (7.37mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：Board Lock
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：5A
Voltage Rating：250V

Headers, Male Pins datasheet and documents for 300HBT2R06

300HBT2R06

Headers, Male Pins Overview

The On Shore Technology Inc. 300HBT2R06 is a 6-position header connector designed for right-angle through-hole mounting on printed circuit boards. It features a 3.00mm pitch and utilizes a locking ramp fastening mechanism to secure mating components. The contacts are soldered directly to the PCB, with a contact length of 3.20mm and an insulation height of 7.37mm. This component is RoHS3 compliant and intended for reliable electrical interconnection in electronic assemblies requiring angled termination.
