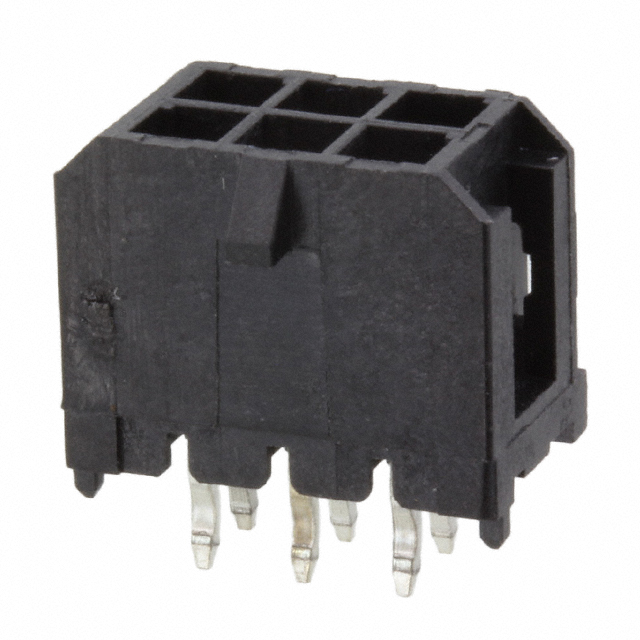

300HBT2V06

300HBT2V06 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists On Shore Technology Inc.. Its product description is CONN HEADER VERT 6POS 3MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 300HBT2V06

• Description：CONN HEADER VERT 6POS 3MM
• Series：-
• Mfr：On Shore Technology Inc.
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.118" (3.00mm)
• Number of Positions：6
• Number of Rows：2
• Row Spacing - Mating：0.118" (3.00mm)
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole
• Termination：Kinked Pin, Solder
• Fastening Type：Locking Ramp
• Contact Length - Mating：-
• Contact Length - Post：0.126" (3.20mm)
• Overall Contact Length：-
• Insulation Height：0.390" (9.91mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Tin
• Contact Material：Brass
• Insulation Material：Polyamide (PA6T), Nylon 6T
• Features：Board Guide
• Operating Temperature：-40°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：5A
• Voltage Rating：250V

Headers, Male Pins datasheet and documents for 300HBT2V06
