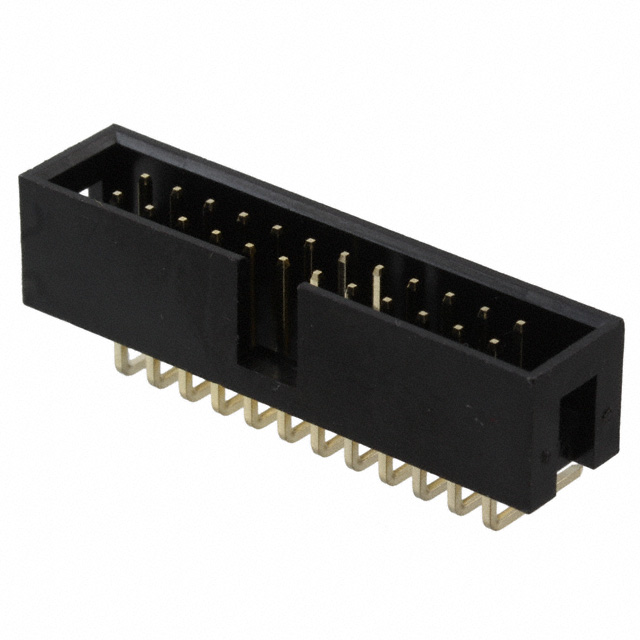

302-R241

$0.68

Description：CONN HEADER R/A 24POS 2.54MM
Series：302
Mfr：On Shore Technology Inc.
Package：Tray

SKU:9ae49a38d27e Category: Headers, Male Pins Brand: On Shore Technology Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

302-R241 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists On Shore Technology Inc.. Its product description is CONN HEADER R/A 24POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 302-R241

Description：CONN HEADER R/A 24POS 2.54MM
Series：302
Mfr：On Shore Technology Inc.
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：24
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：0.122" (3.10mm)
Overall Contact Length：-
Insulation Height：0.358" (9.10mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：Gold
Contact Material：Brass
Insulation Material：Polyester, Glass Filled
Features：Keying Slot
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：250V

Headers, Male Pins datasheet and documents for 302-R241

302-R241

Headers, Male Pins Overview

The 302-R241 is a male header connector manufactured by On Shore Technology Inc., designed for through-hole PCB mounting. It features a right-angle configuration with 24 positions and a 2.54mm pitch. The component supports a current rating of 3A and a voltage rating of 250V. Contact post finish thickness is specified at 1.25µin (0.032µm). The base product number is 302-R24. Standard lead time is 12 weeks.

Headers, Male Pins Feature Summary

Right-angle male pin header configuration
Through-hole mounting technology
Side interlocking feature

Headers, Male Pins Applications

General electronic circuit interconnections
PCB-to-PCB or PCB-to-wire harness connections
Industrial control system wiring

Headers, Male Pins Procurement Notes

Verify the exact part number against manufacturer documentation to ensure compatibility with specific board layouts. Confirm that the 2.54mm pitch and right-angle orientation match the design requirements. Check RoHS compliance status if environmental regulations apply to the final assembly. Ensure the 3A current rating meets the application's electrical load demands before procurement.

Headers, Male Pins Selection Notes

Select this component when a right-angle male header is required for reliable through-hole connection. The 24-position count suits applications needing moderate density. Consider the 3A current capacity and 250V voltage rating for suitability in low-power signal or power distribution circuits. Verify mechanical fit within the enclosure constraints due to the right-angle profile.

Headers, Male Pins Part Context

This part belongs to the 302-R24 series of male headers from On Shore Technology Inc. It is distinct from terminal blocks like the OSTYO172150 or other connectors in the catalog. The series provides standardized spacing and mounting options for various electronic assemblies requiring robust mechanical and electrical connections.
