302-R401

$0.95

Description：CONN HEADER R/A 40POS 2.54MM
Series：302
Mfr：On Shore Technology Inc.
Package：Tray

SKU:3f5f999b1fe6 Category: Headers, Male Pins Brand: On Shore Technology Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

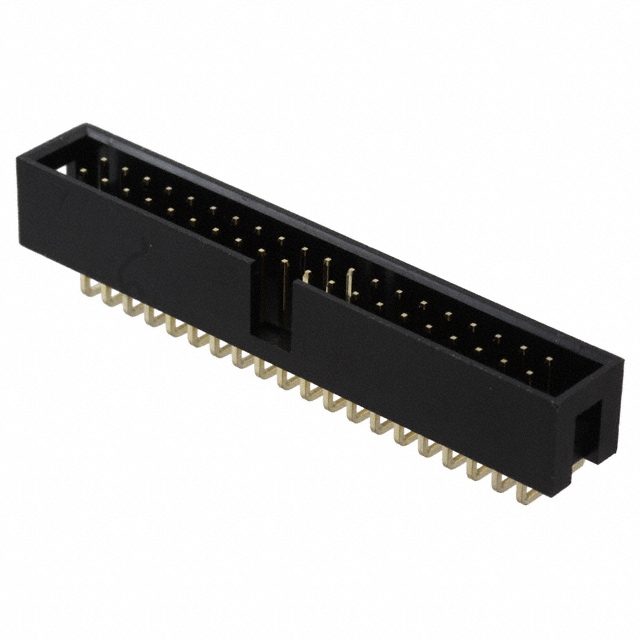

302-R401 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists On Shore Technology Inc.. Its product description is CONN HEADER R/A 40POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 302-R401

Description：CONN HEADER R/A 40POS 2.54MM
Series：302
Mfr：On Shore Technology Inc.
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：40
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：0.122" (3.10mm)
Overall Contact Length：-
Insulation Height：0.358" (9.10mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：Gold
Contact Material：Brass
Insulation Material：Polyester, Glass Filled
Features：Keying Slot
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：250V

Headers, Male Pins datasheet and documents for 302-R401

302-R401

Headers, Male Pins Overview

The 302-R401 is a male pin header connector manufactured by On Shore Technology Inc. It features a right-angle through-hole mounting style with 40 positions and a 2.54mm (0.100 inch) pitch. The connector is shrouded with a four-wall design, suitable for LED or diode testing applications. It utilizes phosphor bronze contacts housed in thermoplastic material rated UL94 V-0 for flammability. The component operates within a temperature range of -40°C to 105°C and supports wire gauges from 12 to 28 AWG. Insulation resistance is specified at 1000 MOhm, with maximum contact resistance at 20 mOhm.

Headers, Male Pins Feature Summary

Right-angle through-hole mounting configuration
Shrouded four-wall housing design
Thermoplastic construction with UL94 V-0 rating

Headers, Male Pins Applications

LED testing circuits
Diode testing setups
General interconnect solutions in control systems

Headers, Male Pins Procurement Notes

Verify the specific revision and packaging details directly with authorized distributors before ordering. Confirm that the right-angle orientation and 40-position count match the target PCB footprint requirements. Ensure compatibility with existing assembly equipment for through-hole soldering processes.

Headers, Male Pins Selection Notes

Select this component when a high-density, right-angle male header is required for board-to-board or cable connections. The shrouded design provides alignment assistance and protection against misinsertion. Consider the 2.54mm pitch standard for broad availability of mating connectors and accessories.

Headers, Male Pins Part Context

This part belongs to the 302 series of headers from On Shore Technology Inc., a manufacturer established in 1988 specializing in interconnect products for computer, control, and telecom industries. The series offers various position counts and mounting styles to support diverse electronic assembly needs.
