302-R501

Headers, Male Pins Overview

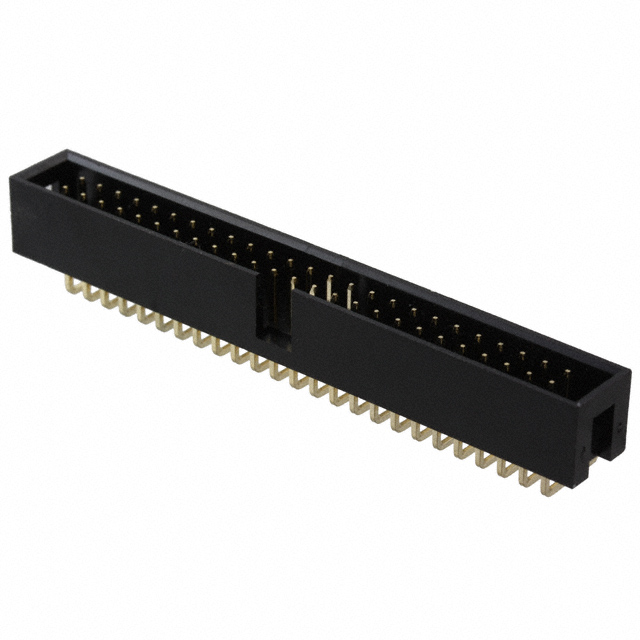

The On Shore Technology Inc. 302-R501 is a rectangular header connector designed for through-hole mounting on printed circuit boards. It features 50 positions with a 0.100-inch (2.54mm) pitch, providing reliable interconnection between the board and mating cables or wires. The contacts are gold-plated to ensure low resistance and corrosion resistance, while the housing is constructed from thermoplastic material rated for operation up to 250V. This right-angle configuration facilitates compact board layouts.

Headers, Male Pins Feature Summary

• Right-angle orientation for space-efficient PCB integration
• Gold-plated contacts for enhanced conductivity and durability
• Through-hole termination method for secure mechanical attachment

Headers, Male Pins Applications

• Industrial control panel wiring
• Consumer electronics assembly
• Computer peripheral connections

Headers, Male Pins Procurement Notes

Verify that the specific suffix matches the required pin count and orientation. Confirm RoHS compliance status if environmental regulations apply to your manufacturing process. Ensure the mating connector matches the 2.54mm pitch specification to guarantee proper fit and electrical continuity during assembly.

Headers, Male Pins Selection Notes

Select this component when a high-density, right-angle connection is required for signal or power distribution. Consider the 250V rating and current capacity relative to the application load. Evaluate the need for gold plating versus tin depending on solderability requirements and long-term exposure conditions in the final product environment.

Headers, Male Pins Part Context

This part belongs to the standard rectangular header series produced by On Shore Technology Inc., a manufacturer specializing in interconnect solutions. The 302 series typically offers various position counts and orientations, allowing engineers to scale designs while maintaining consistent mechanical and electrical interface standards across different product lines.

Headers, Male Pins Replacement Considerations

Parametric equivalents include headers with identical 50-position, 2.54mm pitch, and right-angle specifications. Verify contact plating and voltage ratings match before substitution. Generic alternatives may vary in housing material or termination style, requiring mechanical re-evaluation.
