302-R601

Headers, Male Pins Overview

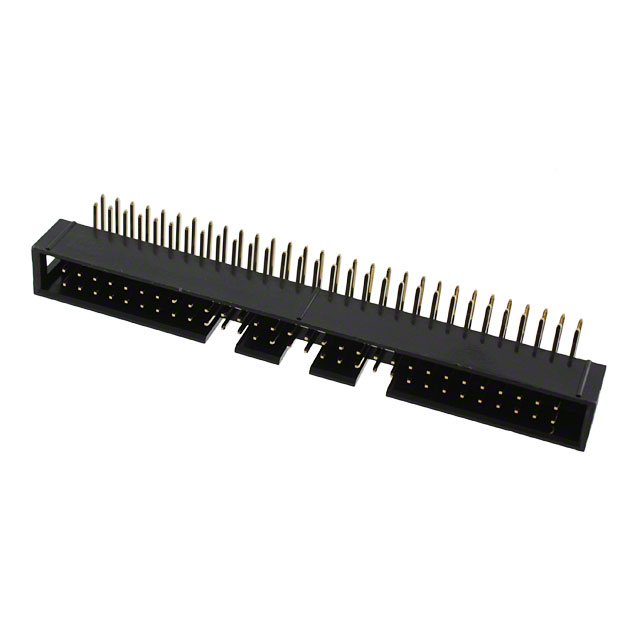

The 302-R601 is a board-to-cable/wire header manufactured by On Shore Technology Inc. It features a right-angle configuration with 60 positions arranged in two rows. The connector utilizes a 0.100-inch (2.54mm) row spacing and employs solder termination for PCB mounting. It includes shrouding with a four-wall design to ensure proper alignment and protection. The unit operates within a temperature range of -40°C to 105°C and incorporates a keying slot feature.

Headers, Male Pins Feature Summary

• Right-angle board-to-cable/wire header design
• Shrouded four-wall construction for alignment
• Keying slot for orientation control

Headers, Male Pins Applications

• Board-to-cable interconnections
• Board-to-wire interconnections
• General electronic assembly requiring right-angle headers

Headers, Male Pins Procurement Notes

Verify the specific part number 302-R601 against official On Shore Technology Inc. documentation to confirm active status and exact specifications. Ensure compatibility with mating connectors regarding pin count, row configuration, and shrouding style. Check for required accessories such as corresponding housings or cables if not included in the standard package.

Headers, Male Pins Selection Notes

Select this component when a right-angle male header with 60 positions and 2.54mm pitch is required. The shrouded design aids in preventing misalignment during insertion. Verify that the operating temperature range and current ratings meet the system requirements. Confirm that the right-angle form factor fits within the available mechanical space constraints.

Headers, Male Pins Part Context

This component belongs to the 302 series of headers from On Shore Technology Inc., which offers various configurations including vertical and right-angle options. The series provides different position counts and termination styles to suit diverse electronic assembly needs. The 302-R601 specifically addresses applications requiring high-density right-angle connections with secure shrouding.
