302-R641

Headers, Male Pins Overview

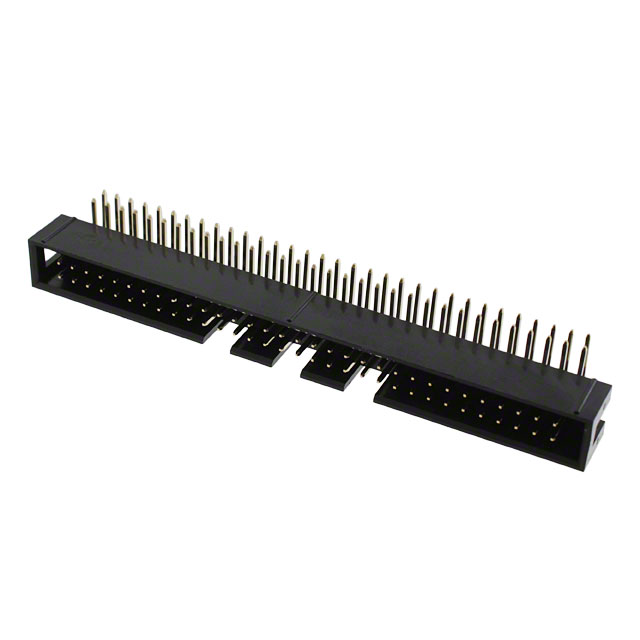

The 302-R641 is a male pin header manufactured by On Shore Technology Inc., designed for through-hole mounting on printed circuit boards. This component features a right-angle configuration with 64 positions and a pitch of 0.100 inches (2.54mm). It utilizes gold plating on the contact surfaces to ensure reliable electrical connectivity. The shrouded design provides four-sided protection, enhancing alignment during mating. This connector is intended for high-density signal transmission applications requiring robust mechanical stability and consistent performance in electronic assemblies.

Headers, Male Pins Feature Summary

• Right-angle orientation facilitates compact board layout integration
• Shrouded housing offers four-sided alignment guidance
• Gold-plated contacts ensure durable signal integrity

Headers, Male Pins Applications

• High-density signal interconnects in control systems
• Telecommunications equipment backplanes
• Industrial computer motherboards

Headers, Male Pins Procurement Notes

Verify that the specific suffix R641 corresponds to the 64-position variant when sourcing. Confirm that the right-angle specification matches your PCB footprint requirements. Ensure compatibility with standard 2.54mm pitch mating connectors. Check RoHS compliance status if required for your manufacturing process. Validate that the shrouded design aligns with your assembly tooling constraints.

Headers, Male Pins Selection Notes

Select this part when a high-count, right-angle header is necessary for space-constrained designs. The 2.54mm pitch is standard for general-purpose electronics. Consider the shrouded feature if manual insertion or automated pick-and-place alignment is critical. Gold plating is preferred for environments where corrosion resistance is important. Evaluate the 64-pin count against your signal routing needs before finalizing the selection.

Headers, Male Pins Part Context

This component belongs to the 302 series of headers from On Shore Technology Inc. The series typically includes various pin counts and orientations. The R641 specifically denotes the right-angle, 64-position variant within this family. It complements other series like OSTVI for terminal blocks, offering a different connection methodology for signal rather than power distribution.

Headers, Male Pins Replacement Considerations

Direct substitutes include equivalent 64-position, 2.54mm pitch, right-angle headers from other manufacturers. Verify that any replacement maintains the same shrouded height and pin configuration. Amphenol Anytek headers may offer similar specifications but require footprint verification.
