302-S141

Headers, Male Pins Overview

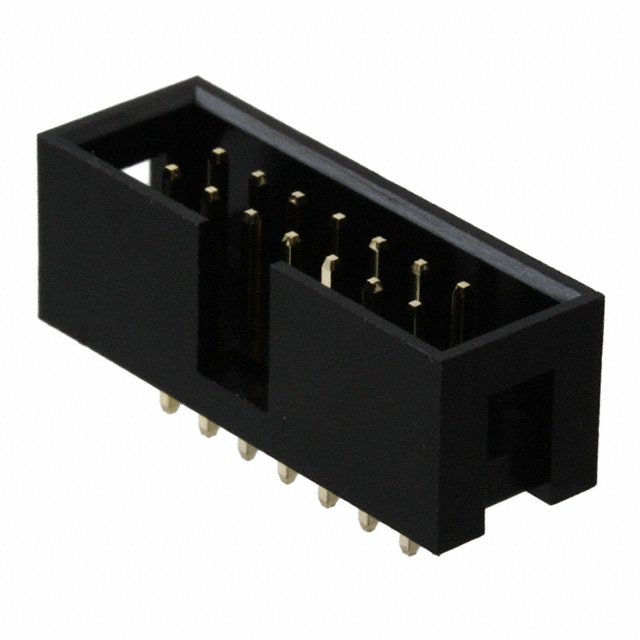

The 302-S141 is a vertical header connector manufactured by On Shore Technology Inc., designed for through-hole mounting on printed circuit boards. It features a 14-position configuration with two rows and a 0.100-inch (2.54mm) mating pitch. The connector utilizes square male pins with gold plating for reliable signal transmission. Rated for 3A current and 250V voltage, it operates within a temperature range of -40°C to 105°C. The housing is constructed from black glass-reinforced polyester meeting UL94 V-0 flammability standards, ensuring stability in electronic assemblies.

Headers, Male Pins Feature Summary

• Shrouded design with four-sided walls to ensure correct mating alignment
• Gold-plated square contact pins for durable electrical connectivity
• Push-pull locking mechanism for secure board attachment

Headers, Male Pins Applications

• Industrial control system interconnections
• Consumer electronics assembly
• General-purpose PCB-to-cable wiring

Headers, Male Pins Procurement Notes

Verify the specific part number 302-S141 against official On Shore Technology Inc. documentation to confirm pin count, pitch, and plating specifications. Ensure compatibility with mating sockets and check for RoHS compliance requirements relevant to your manufacturing process before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a vertical, shrouded header with a 2.54mm pitch is required for through-hole applications. Consider the 14-position layout and 3A current rating to match circuit demands. Verify that the operating temperature range and flammability rating meet the environmental constraints of the target device.

Headers, Male Pins Part Context

This component belongs to the 302 series of rectangular connectors from On Shore Technology Inc. It is categorized under headers and male pins, specifically designed for board-to-wire or board-to-cable connections. The series offers various position counts and configurations to support diverse electronic interconnection needs.

Headers, Male Pins Replacement Considerations

OSTT7032150 is listed as a similar substitute part number by On Shore Technology Inc. However, verify mechanical dimensions and electrical ratings to ensure functional equivalence before replacement.
