302-S161

Headers, Male Pins Overview

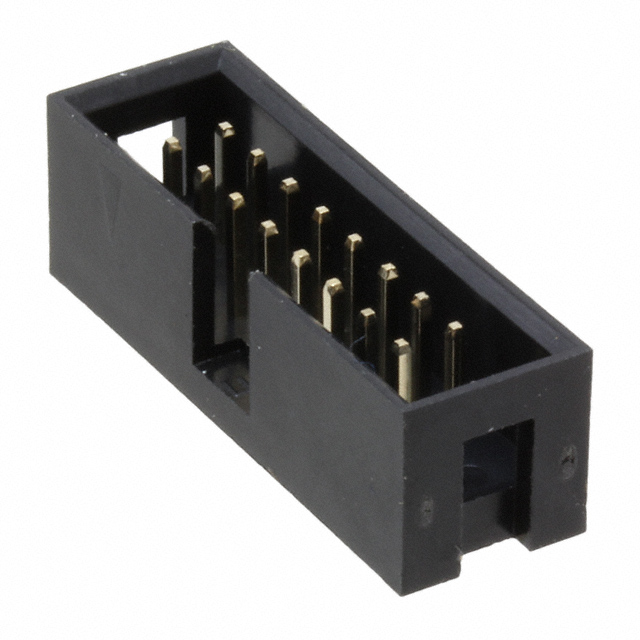

The On Shore Technology Inc. 302-S161 is a male pin header connector designed for vertical through-hole PCB mounting. It features a 16-position configuration with a 2.54mm (0.100 inch) pitch, suitable for reliable signal and power distribution in electronic assemblies. The component utilizes gold-plated contacts to ensure low contact resistance and long-term durability against corrosion. Rated for 250V voltage and compatible with standard wire gauges, it includes a keying slot to prevent misalignment during installation. Operating within a temperature range of -40°C to 105°C, this connector meets RoHS standards and is packaged in trays for automated handling.

Headers, Male Pins Feature Summary

• Vertical mating orientation with integrated keying slot for precise alignment
• Gold-plated contacts ensuring stable electrical performance
• Through-hole mounting for secure mechanical attachment

Headers, Male Pins Applications

• Industrial control panel wiring
• Consumer electronics assembly
• Computer peripheral connections

Headers, Male Pins Procurement Notes

Verify the specific manufacturer part number against official distributor catalogs to confirm active status and RoHS compliance. Ensure the ordering suffix matches the required packaging type, as variations may exist between tray and bulk formats. Cross-reference the lead time requirements with current supply chain data, as availability can fluctuate based on production schedules. Confirm that the selected variant aligns with the intended application's thermal and electrical specifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a vertical header with a 2.54mm pitch is required for board-to-wire or board-to-board interfaces. The 16-position count suits applications needing moderate channel density without excessive footprint usage. Consider the gold plating for environments requiring high reliability and resistance to oxidation. Ensure the PCB layout accommodates the through-hole pad size and that the mating connector supports the keying feature to maintain correct orientation during assembly.

Headers, Male Pins Part Context

This part belongs to the 302 series of headers from On Shore Technology Inc., which focuses on versatile interconnect solutions. The series offers various position counts and pitch options to support diverse design needs. As a male pin header, it pairs with female socket connectors to create robust connection points. The product line emphasizes ease of use and compatibility with standard manufacturing processes, making it a common choice for general-purpose electronic hardware development.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 16-position count, 2.54mm pitch, and vertical orientation. Verify that alternative components offer comparable gold plating thickness and current ratings. Check for identical keying slot placement to ensure mechanical compatibility with existing enclosures or mating parts. Confirm that the replacement maintains the same through-hole mounting style and operating temperature range to avoid redesign efforts.
