302-S241

Headers, Male Pins Overview

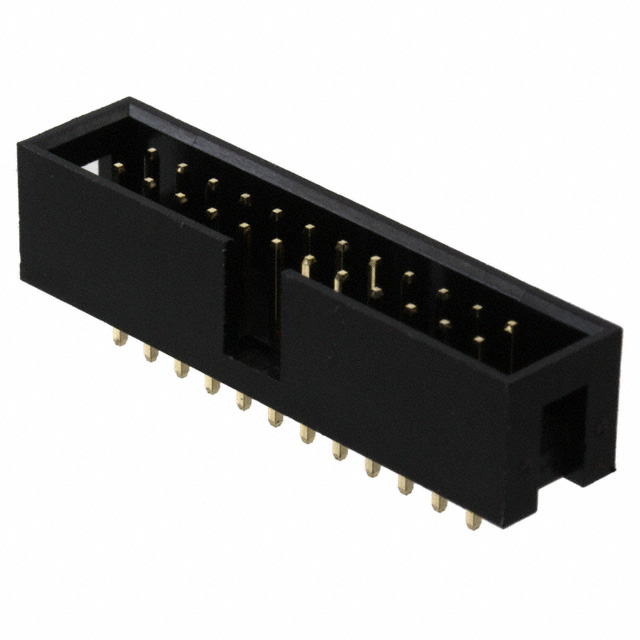

The 302-S241 is a shrouded header connector manufactured by On Shore Technology Inc., designed for through-hole mounting on printed circuit boards. It features a 2x12 pin configuration with a 2.54mm pitch, providing 24 positions in total. The connector supports a rated voltage of 250V and a current capacity of 3A. Contact surfaces are gold-plated brass, ensuring reliable electrical performance. The housing is constructed from glass-reinforced polyester with a UL94 V-0 flame retardant rating. Operating temperatures range from -40°C to 105°C.

Headers, Male Pins Feature Summary

• Four-sided shrouding provides alignment guidance and prevents misinsertion during mating.
• Gold-plated contacts offer corrosion resistance and stable signal transmission.
• Keyed design ensures correct orientation and secure mechanical connection.

Headers, Male Pins Applications

• Industrial control system interconnections
• Consumer electronics board-to-board linking
• Telecommunications equipment signal routing

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to confirm exact pin count and shroud configuration. Ensure compatibility with mating headers regarding keying and height specifications. Confirm RoHS compliance status if required for your assembly process. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Headers, Male Pins Selection Notes

Select this component when a 24-position vertical header with full shrouding is required. The 2.54mm pitch suits standard PCB layouts. Consider the 3A current rating for power distribution needs. The through-hole mounting style offers robust mechanical stability compared to surface mount alternatives.

Headers, Male Pins Part Context

This part belongs to the 302 series of rectangular connectors from On Shore Technology Inc. The series includes various pin counts and configurations, all sharing similar shrouded header characteristics. The 302-S241 specifically represents the 24-pin variant within this family, maintaining consistent dimensional and electrical standards across the line.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other 2x12 shrouded headers with identical 2.54mm pitch and through-hole mounting. Verify that alternative parts match the four-sided shroud height and keying position to ensure proper fitment.

Headers, Male Pins FAQ

What is the contact material for the 302-S241?

The contacts are made of brass with a gold plating finish.

Does the connector have a locking mechanism?

Yes, it features a push-pull locking type mechanism for secure attachment.
