302-S261

Headers, Male Pins Overview

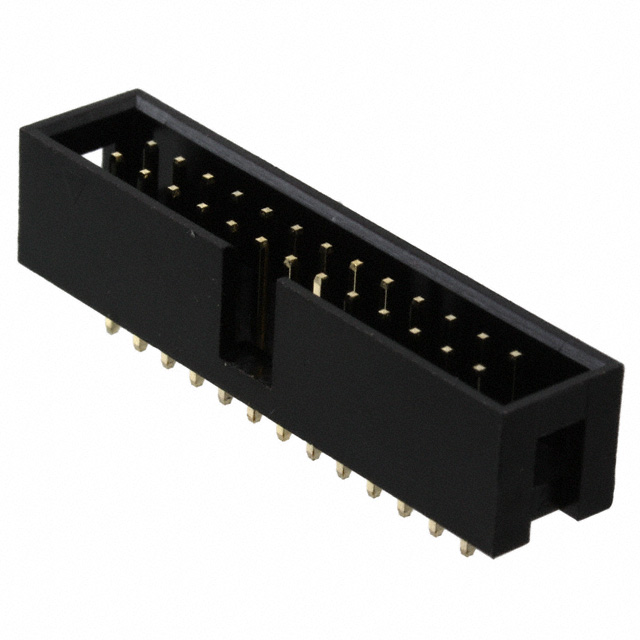

The On Shore Technology Inc. 302-S261 is a vertical male pin header connector designed for through-hole mounting on printed circuit boards. It features a shrouded design with four-sided coverage to ensure proper alignment and protection during assembly. The component provides 26 positions with a standard 2.54mm pitch, accommodating a current rating of 3A and a voltage rating of 250V. Contact surfaces are finished with gold plating to enhance conductivity and corrosion resistance. The unit operates within a temperature range of -30°C to 105°C and complies with RoHS standards.

Headers, Male Pins Feature Summary

• Shrouded header design with four-sided coverage for secure mating
• Vertical orientation optimized for through-hole PCB integration
• Gold-plated contacts ensuring reliable signal transmission

Headers, Male Pins Applications

• Industrial control system interconnections
• Consumer electronics module assembly
• General-purpose circuit board signal routing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact finish thickness and material specifications. Ensure compatibility with mating card edge connectors regarding height and shroud dimensions. Confirm environmental compliance status such as RoHS and lead-free requirements against project specifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a vertical, shrouded male header is required for high-density connections. The 2.54mm pitch suits standard PCB layouts, while the 3A rating supports moderate power applications. Consider the through-hole mounting method for robust mechanical stability in vibration-prone environments compared to surface mount alternatives.

Headers, Male Pins Part Context

This part belongs to the 302 series of headers manufactured by On Shore Technology Inc. The series offers various pin counts and configurations tailored for diverse electronic assembly needs. The 302-S261 specifically addresses applications requiring a 26-position interface with enhanced physical protection provided by the shrouded housing structure.

Headers, Male Pins Replacement Considerations

OSTVI170152 is listed as a parameter-equivalent alternative from the same manufacturer. Verify mechanical fit and electrical ratings before substitution. Other generic 26-position 2.54mm headers may serve as functional replacements if dimensional tolerances align.

Headers, Male Pins FAQ

What is the contact finish material for the 302-S261?

The contacts feature a gold finish to provide reliable conductivity and durability.

Is this connector suitable for high-voltage applications?

It has a voltage rating of 250V, which is suitable for standard low-to-medium voltage circuits but not high-voltage industrial mains.
