302-S501

Headers, Male Pins Overview

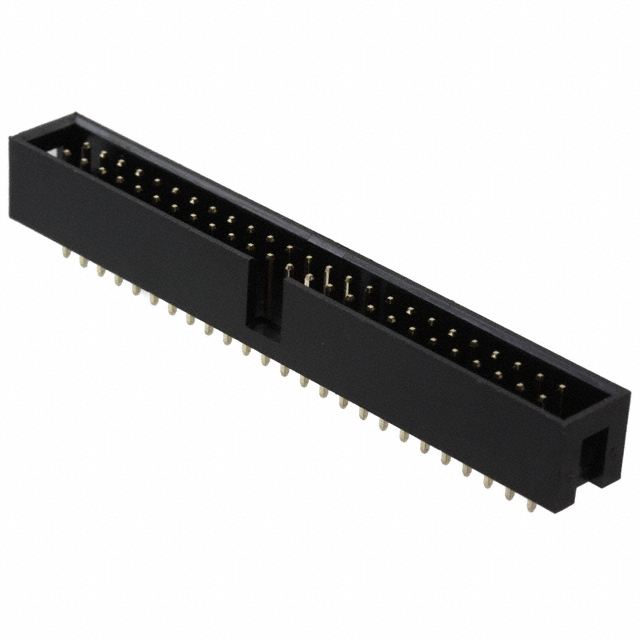

The 302-S501 is a rectangular header connector manufactured by On Shore Technology Inc. It features 50 positions with a 0.100-inch (2.54mm) pitch, designed for vertical through-hole mounting. The contacts are gold-plated brass, ensuring reliable signal transmission. Rated for 250V and 3A, it operates within a temperature range of -40°C to 105°C. Maximum contact resistance is specified at 20mOhm. The component measures 71.12mm in length and is packaged in trays.

Headers, Male Pins Feature Summary

• Vertical shrouded box header design for secure mating
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Through-hole termination style for robust PCB attachment

Headers, Male Pins Applications

• Industrial control panel interconnections
• Consumer electronics internal wiring
• General-purpose circuit board signal routing

Headers, Male Pins Procurement Notes

Verify the specific pin count and pitch against schematic requirements before ordering. Confirm that the gold plating specification meets the application's durability needs. Ensure the through-hole footprint matches the PCB layout dimensions precisely. Check RoHS compliance status if required by project regulations.

Headers, Male Pins Selection Notes

Select this model when a high-density 50-position header is required for vertical assembly. The 2.54mm pitch is standard for general electronics, facilitating compatibility with common ribbon cables or wire harnesses. Consider the 3A current rating for power distribution limits within the circuit design constraints.

Headers, Male Pins Part Context

This component belongs to the 302-S series of headers from On Shore Technology Inc., which offers various position counts including S241, S261, S301, and S401. The series provides standardized shrouded headers for consistent mechanical integration across different product lines.

Headers, Male Pins Replacement Considerations

No direct substitute part numbers are confirmed in the provided documentation. Generic equivalents may exist but require verification of pin count, pitch, and plating specifications.
