302-S601

Headers, Male Pins Overview

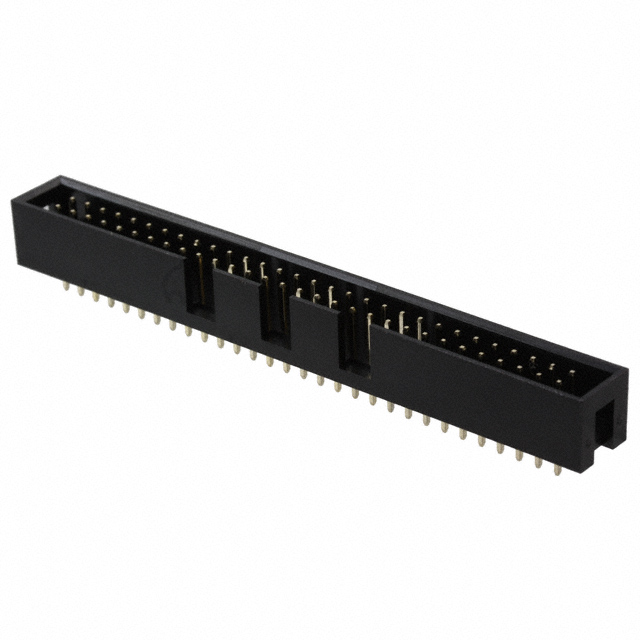

The 302-S601 is a male pin header connector manufactured by On Shore Technology Inc. It features a vertical orientation with 60 positions and a 2.54mm (0.100 inch) pitch. The component utilizes gold-plated contacts for reliable signal transmission. Rated for 3A current and 250V voltage, it is designed for through-hole mounting on printed circuit boards. This shrouded header ensures correct insertion alignment during assembly.

Headers, Male Pins Feature Summary

• Vertical male pin configuration for standard PCB mounting
• Gold-plated contact surfaces to ensure low resistance and corrosion resistance
• Shrouded housing design to guide pins and prevent misalignment
• Through-hole termination method for secure mechanical attachment

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Signal routing between daughterboards and motherboards
• Industrial control panel wiring connections
• Consumer electronics internal module linking

Headers, Male Pins Procurement Notes

Verify the specific contact plating thickness and material composition against the official datasheet before integration. Confirm that the 60-position layout matches the target footprint requirements. Ensure the voltage and current ratings align with the system's operational limits. Check for RoHS compliance status if environmental regulations apply to the final product assembly.

Headers, Male Pins Selection Notes

Select this component when a high-density vertical connection is required. The 2.54mm pitch is standard for many legacy and modern designs. Consider the shrouded feature if mating connectors need physical guidance. Evaluate the 3A rating against peak load currents. Compare dimensions against available board space constraints.

Headers, Male Pins Part Context

This part belongs to the series of male pin headers produced by On Shore Technology Inc. These components are widely used in industrial and commercial electronics for reliable electrical connections. The manufacturer specializes in terminal blocks and interconnect solutions, providing standardized options for PCB assembly needs across various sectors.

Headers, Male Pins Replacement Considerations

• 302-S101

Headers, Male Pins FAQ

What is the contact material for the 302-S601?

The contacts are made of brass with a gold plating finish.

Does this connector have a shroud?

Yes, the 302-S601 features a shrouded housing to assist in proper alignment.
