304-13-101-41-770000

Headers, Receptacles, Female Sockets Overview

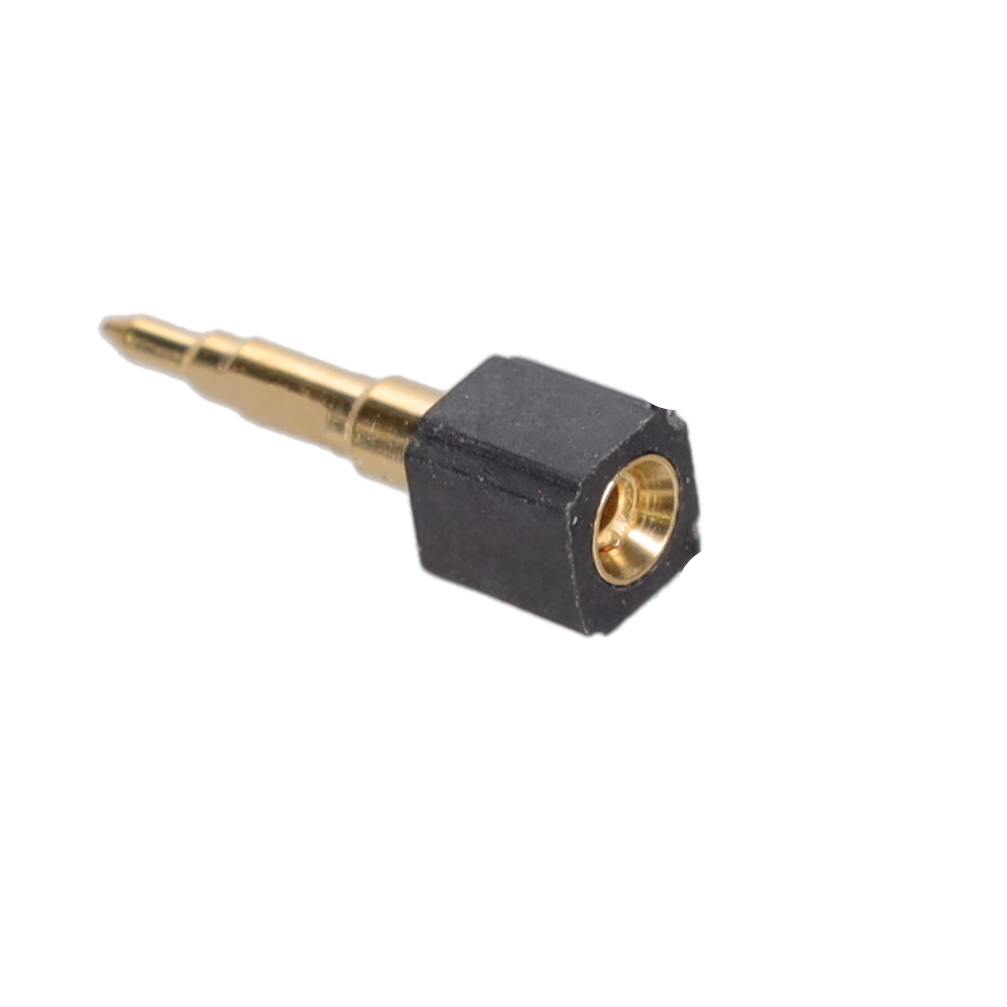

The Mill-Max 304-13-101-41-770000 is a single-row IC socket designed for press-fit mounting into plated through-holes. It features 1 position with a .100 inch (2.54mm) pitch. The connector accepts leads with diameters ranging from .015 to .025 inches. Electrical specifications include a current rating of 3 Amps, maximum contact resistance of 10.00mΩ, minimum insulation resistance of 10,000 MΩ, and a rated voltage of 100 Volts.

Headers, Receptacles, Female Sockets Feature Summary

• Solderless press-fit termination method for reliable board attachment
• Precision-machined construction for high-reliability interconnect applications
• Gold-plated contacts ensure stable electrical performance

Headers, Receptacles, Female Sockets Applications

• IC and component sockets
• Single in-line package connections
• Printed circuit board interconnects

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific part number against official Mill-Max documentation to confirm availability and compliance status. Check regional distribution channels as stock may be limited or restricted in certain areas. Ensure that the selected variant matches the required pin count and mounting style for your specific design implementation.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a solderless press-fit solution is required for single-position interconnects. Consider the .100 inch pitch and lead diameter acceptance range (.015-.025 inches) to ensure mechanical compatibility. Verify that the 3 Amp current rating and 100 Volt rating meet the circuit requirements before finalizing the design.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Mill-Max 304 series of interconnect sockets. The series includes various configurations for SIP and DIP applications. Mill-Max Manufacturing Corp. specializes in precision-machined interconnect components, offering high-reliability solutions for electronic assemblies since 1971.

Headers, Receptacles, Female Sockets Replacement Considerations

Cross-reference with other Mill-Max 304 series parts for alternative pin counts. Verify mechanical dimensions and electrical ratings against similar press-fit sockets from other manufacturers if supply constraints exist.

Headers, Receptacles, Female Sockets FAQ

What is the mounting type for this socket?

The mounting type is press-fit into a plated through-hole.

What lead diameters does this socket accept?

It accepts lead diameters ranging from .015 inches to .025 inches (0.381-0.635mm).
