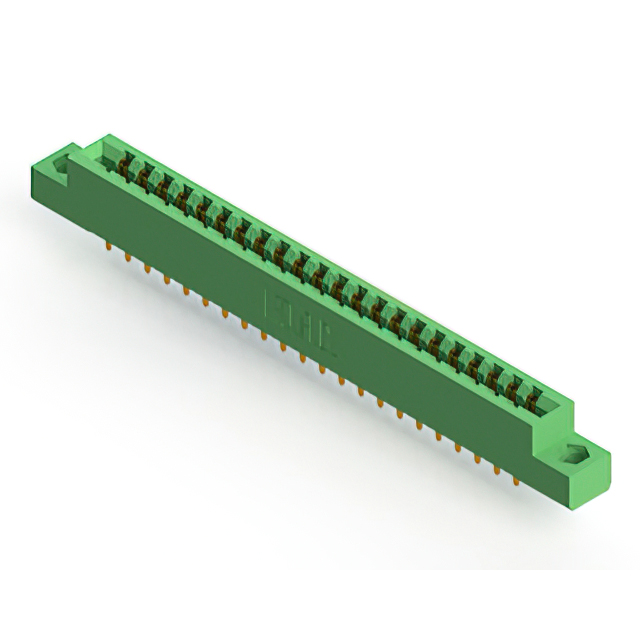

305-044-521-204 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 44POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 305-044-521-204
- Description：CONN EDGE DUAL FMALE 44POS 0.156
- Series：305
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：22
- Number of Positions：44
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Semi Bellows
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 305-044-521-204
Edgeboard Connectors Overview
The EDAC Inc. 305-044-521-204 is a standard card edge connector featuring 44 positions with a 3.96 mm pitch. Designed for panel mounting, it utilizes a vertical orientation and solder termination type. The contacts are constructed from copper alloy with gold plating to ensure reliable signal transmission. This dual-edge female connector accommodates a board thickness of 1.57 mm and is housed in a green casing.
Edgeboard Connectors Feature Summary
- Dual-edge female contact configuration for secure card insertion
- Gold-plated copper alloy contacts for corrosion resistance
- Vertical panel mount design with solder lug termination
Edgeboard Connectors Applications
- Industrial control systems requiring robust card edge interfaces
- Telecommunications equipment backplanes
- Automotive electronic modules
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count, pitch, and termination style. Ensure compatibility with the target PCB thickness and mounting requirements before procurement. Cross-reference the part number with official EDAC documentation to validate availability and compliance status.
Edgeboard Connectors Selection Notes
Select this component when a 44-position interface with a 3.96 mm pitch is required. It is suitable for applications demanding vertical panel mounting and durable gold-plated contacts. Consider the dual-edge female design for mating with corresponding card edge boards.
Edgeboard Connectors Part Context
This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and pitches, providing modular solutions for interconnect needs. The 305 series is characterized by its reliability in industrial and commercial environments.
Edgeboard Connectors FAQ
What is the contact finish material?
The contacts are made of copper alloy with a gold finish.
Does this connector support single or dual edge mating?
It is designed as a dual-edge female connector.
