305-062-520-558

Edgeboard Connectors Overview

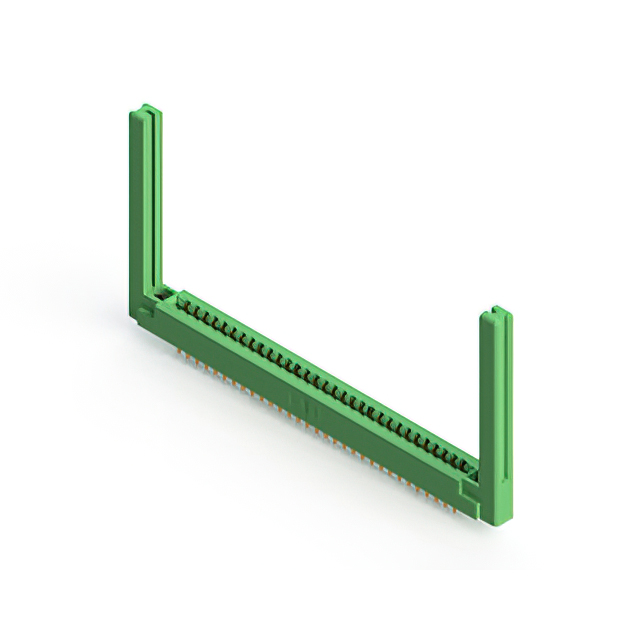

The EDAC Inc. 305-062-520-558 is a standard card edge connector designed for vertical panel mounting applications. It features a dual female configuration with 62 positions arranged in two rows. The component utilizes a 0.156-inch (3.96 mm) pitch and is engineered to accommodate board thicknesses of up to 1.57 mm. Electrical specifications include a current rating of 5 A, supported by gold-plated copper alloy contacts. The termination method employs solder pins, ensuring secure mechanical and electrical connections within the assembly.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for high-density signal routing
• Vertical panel mount orientation for structural integration
• Gold-plated copper alloy contacts for reliable conductivity
• Solder pin termination for robust PCB attachment

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Automotive electronic module interfaces
• Medical device circuit board connections

Edgeboard Connectors Procurement Notes

Verify that the specific ordering suffix matches the required contact plating and insulator color specifications. Confirm that the host printed circuit board design accommodates the 0.156-inch pitch and 1.57 mm maximum thickness constraints. Ensure compatibility with the specified 5 A current rating for the intended application load. Cross-reference the manufacturer datasheet for precise dimensional tolerances before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, vertical card edge interface is required for panel-mounted assemblies. The 62-position count supports moderate-to-high density signal requirements. Verify that the operating environment aligns with the material specifications of the copper alloy contacts and green insulator. Consider the solder pin termination style if through-hole mounting is preferred over surface-mount alternatives for mechanical stability.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and pitch options to suit different connectivity needs. The 305-062-520-558 variant specifically addresses applications requiring a 62-contact dual-row interface with vertical mounting capabilities. It represents a standardized solution for reliable edgeboard connections in commercial and industrial electronics.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate cross-referencing with other EDAC series components only if they match the exact pitch, position count, and mounting style requirements.
