305-078-556-501

Edgeboard Connectors Overview

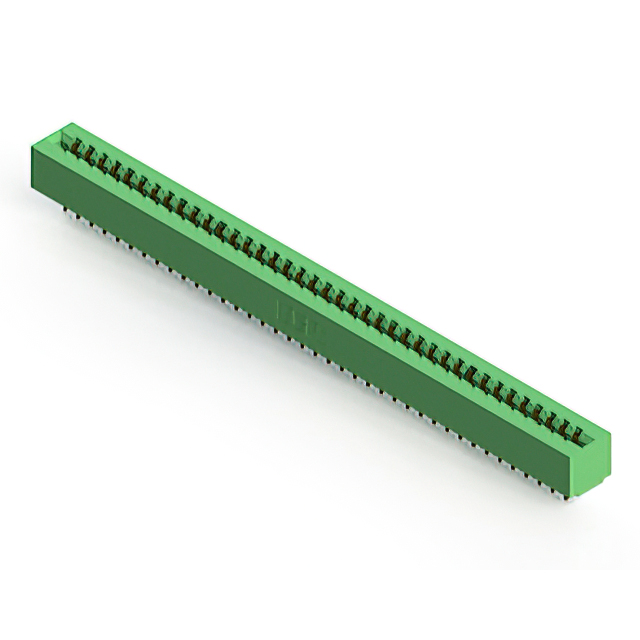

The EDAC Inc. 305-078-556-501 is a standard card edge connector from the 305 series, designed for panel mount applications with a vertical orientation. It features 78 positions in a dual-row configuration with a 3.96 mm (0.156 inch) pitch. The connector accepts non-specified dual-edge cards and utilizes gold-plated copper alloy contacts with a solder pin termination type. It supports a continuous current rating of 5 A and offers insulation resistance of 5 GOhms. The housing is made of green thermoplastic material, suitable for operating temperatures ranging from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure alignment
• Features semi-corrugated contact design for reliable signal transmission
• Provides flush mount flange characteristics with top opening

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing standardized board connections
• Test and measurement devices needing high-density vertical mounting

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct contact plating thickness and housing color specifications. Confirm that the required polarizing key compatibility matches the intended PCB design constraints before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a 78-position dual-edge interface is required with a 3.96 mm pitch. Ensure the application environment falls within the specified -40°C to +105°C temperature range. Verify that the panel mounting style aligns with the mechanical enclosure design requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series is characterized by its versatility in accepting various polarizing keys and its robust construction for industrial environments. The 305 series provides multiple position counts and mounting options to accommodate diverse electronic assembly needs.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 305 series ordering guide for direct substitute part numbers with differing position counts or contact configurations. Cross-reference compatible polarizing key accessories to maintain mechanical integrity during replacement procedures.
