305-080-555-512

Edgeboard Connectors Overview

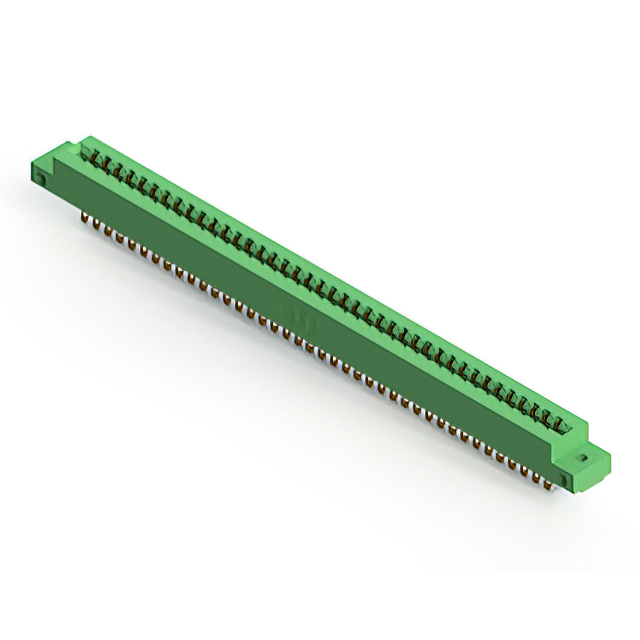

The EDAC Inc. 305-080-555-512 is a standard card edge connector from the 305 series, designed for dual-edge female connections with 80 positions. It features a 0.156-inch (3.96mm) contact spacing and accepts printed circuit boards with a thickness range of 0.054 to 0.070 inches (1.37 to 1.78mm). The connector utilizes gold-plated copper alloy contacts with a half-beeple termination type and solder pin end connections. It is constructed with a green thermoplastic polyester insulator and supports panel mount installation.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated copper alloy contacts for reliable conductivity
• Thermoplastic polyester insulator body for durability

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies requiring high-density interconnects
• Industrial control systems utilizing standard thickness PCBs
• Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify that the specific application requires an 80-position dual-edge connector with a 3.96mm pitch. Confirm compatibility with the target PCB thickness range of 1.37mm to 1.78mm. Ensure the mounting style aligns with panel mount requirements. Check for RoHS compliance if environmental regulations apply to the final product assembly.

Edgeboard Connectors Selection Notes

Select this component when a robust, high-pin-count interface is needed for vertical or panel-mounted applications. The 305 series offers a balance of mechanical stability and electrical performance. Consider the half-beeple contact design for mating force characteristics. Evaluate the green insulator color for visual identification within complex assemblies.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of card edge connectors, which are widely used in industrial and commercial electronics. The series provides various position counts and mounting options. The 305-080 variant specifically addresses needs for higher density connections while maintaining standard spacing dimensions common in legacy and modern designs.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC 305 series parts with identical pin counts and spacing but different flange features. Cross-brand replacements require matching the 3.96mm pitch, 80-position count, and dual-edge female configuration. Verify mechanical fit and electrical ratings before substitution.
