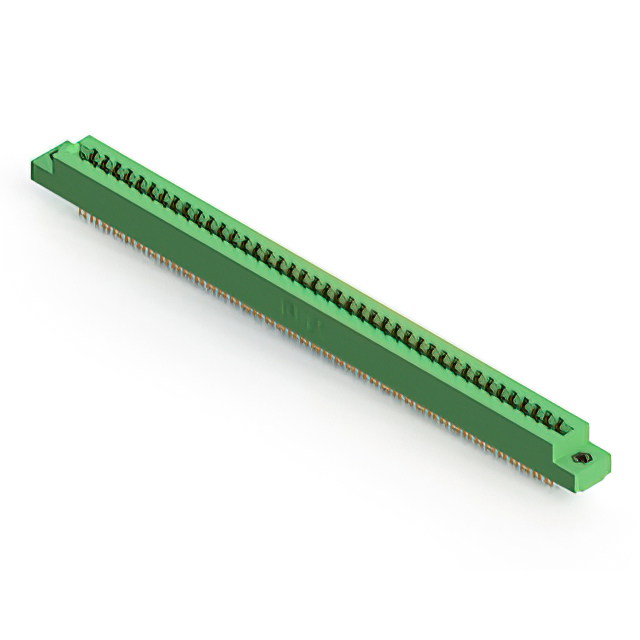

305-082-500-508

$13.06

Description：CONN EDGE DUAL FMALE 82POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:ab8f619a9a08 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-082-500-508 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 82POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-082-500-508

Description：CONN EDGE DUAL FMALE 82POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：41
Number of Positions：82
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-082-500-508

305-082-500-508

Edgeboard Connectors Overview

The EDAC Inc. 305-082-500-508 is a standard card edge connector from the 305 series, designed for dual-edge PCB applications. It features 82 positions with a contact spacing of 0.156 inches (3.96 mm) and a row spacing of 0.140 inches (3.56 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). It utilizes gold-plated copper alloy contacts with a finish thickness of 10.0 µin (0.25 µm) and employs a solder eyelet termination method. Rated for 5 A continuous current and 1800 VACrms insulation voltage, it operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Accepts between-contact and in-contact polarizing keys for secure board alignment
Features a low-profile insulator body constructed from thermoplastic polyester
Provides reliable electrical connection through gold-plated copper alloy half-beam contacts

Edgeboard Connectors Applications

Dual-edge card edge interconnections
Panel mount header assemblies
Industrial control system backplanes

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against the manufacturer's official ordering guide to confirm exact termination style and flange configuration. Ensure the selected variant matches the required PCB thickness tolerance of 0.054 to 0.070 inches. Confirm RoHS compliance status and mating key requirements prior to final procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a high-density 82-position interface is required for dual-edge cards. The 3.96 mm pitch accommodates standard board layouts while maintaining robust mechanical stability. Consider the vertical panel mount style and solder eyelet termination for fixed installation scenarios requiring durable connections.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles, providing versatile solutions for electronic interconnect needs. The 305-082-500-508 specifically addresses applications needing a dual-edge female connector with precise dimensional tolerances and high reliability standards.
