305-082-521-508

Edgeboard Connectors Overview

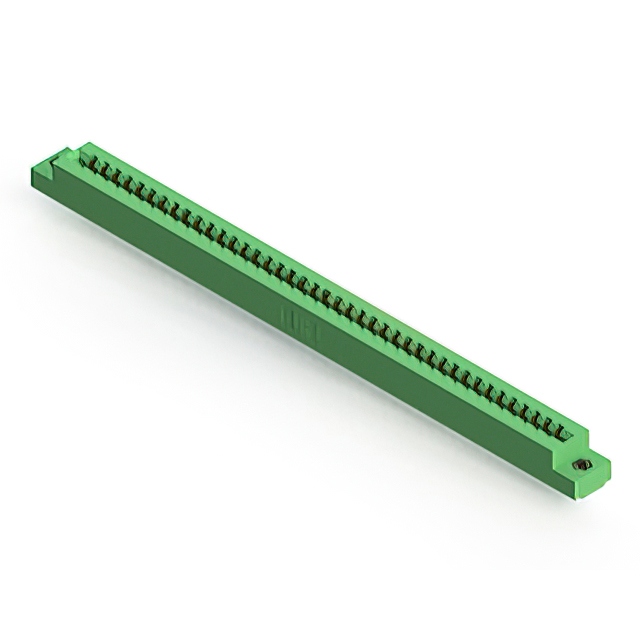

The EDAC Inc. 305-082-521-508 is a dual-edge female card edge connector designed for panel mount and through-hole termination. It features 82 positions with a 0.156-inch (3.96mm) contact spacing across two rows. The contacts are made of copper alloy with a gold plating thickness of 10.0µin (0.25µm). The connector accommodates card thicknesses between 0.054 inches and 0.070 inches (1.37mm to 1.78mm). It utilizes a thermoplastic polyester insulator and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for non-specified board types
• Gold-plated half-beadlet contacts for reliable signal transmission
• Flange feature with top opening and threaded inserts for secure mounting

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment internal circuitry connections
• Agricultural technology hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current 305 Series Ordering Guide to ensure compatibility with required flange styles and contact configurations. Confirm that the target PCB design aligns with the specified 0.156-inch pitch and dual-edge acceptance criteria before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count, dual-sided connection is required for boards within the 1.37mm to 1.78mm thickness range. Ensure the application environment falls within the -40°C to 105°C operating temperature limits and that panel mounting with threaded inserts is feasible for the mechanical design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 Series, which provides a range of card edge connectors for various industrial and commercial applications. The series offers different pin counts and mounting options, utilizing standardized contact spacing and materials to ensure interchangeability and reliability in high-density electronic assemblies.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 305 Series cross-reference documentation for verified substitute part numbers. Ensure any replacement maintains identical pin count, pitch, and mounting characteristics to preserve mechanical and electrical integrity.
