Edgeboard Connectors Overview

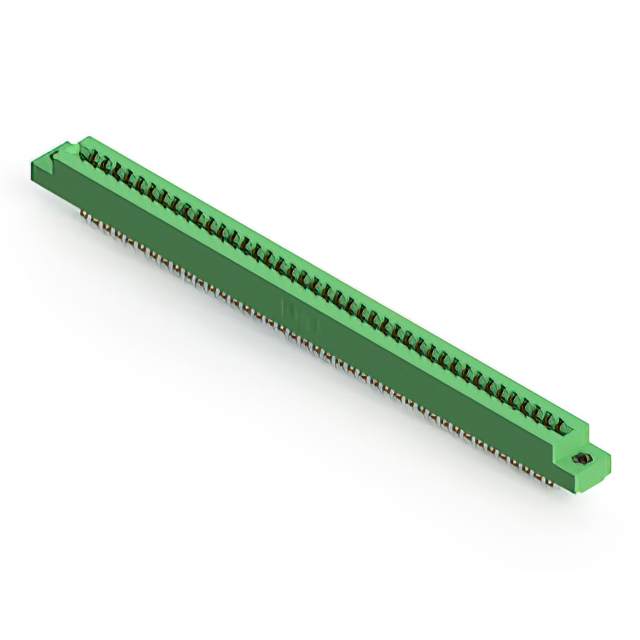

The EDAC Inc. 305-082-555-207 is a standard card edge connector from the 305 series, designed for panel mounting with vertical orientation. It features 82 positions in a dual female configuration with a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contacts are gold-plated copper alloy, and the housing is green thermoplastic. It supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated contacts ensure reliable electrical performance
• Low-profile insulator body design
• Panel mount installation style with vertical orientation

Edgeboard Connectors Applications

• Industrial control systems requiring high-density connections
• Telecommunications equipment backplanes
• Test and measurement instrumentation interfaces
• Automotive electronic module interconnects

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's official ordering guide to confirm plating specifications and termination type. Ensure the target application accommodates the required PCB thickness tolerance. Confirm RoHS compliance status through the latest datasheet documentation before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count dual-edge connector is required for panel-mounted applications. The 3.96 mm pitch allows for robust signal routing in industrial environments. Consider the 5 A current rating and thermal stability for demanding operational conditions. Verify mechanical fit within the enclosure constraints due to the panel mount footprint.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and configurations tailored for diverse electronic assembly needs. The 305 series is characterized by its durable construction and consistent electrical performance across different industrial sectors.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for alternative part numbers with matching pin counts or compatible form factors. Ensure substitute components maintain identical pitch, board thickness acceptance, and mounting style requirements.
