305-082-556-501

Edgeboard Connectors Overview

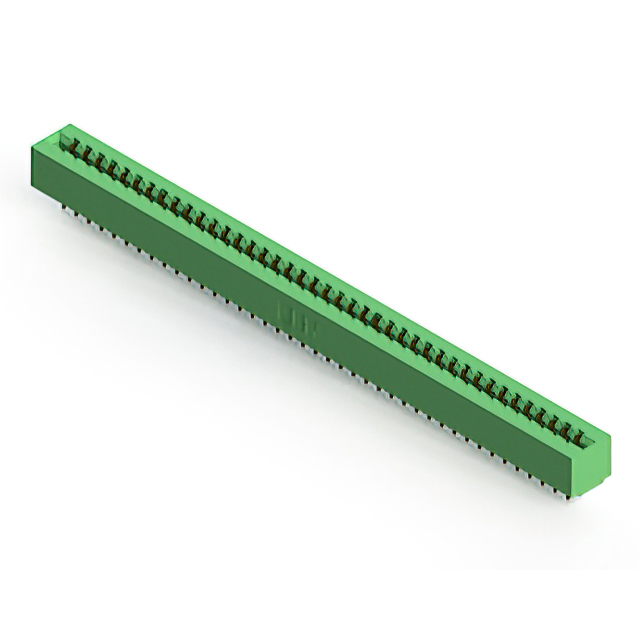

The EDAC Inc. 305-082-556-501 is a standard card edge connector from the 305 series, designed for dual-edge board insertion. It features an 82-position configuration with a contact spacing of 3.96 mm (0.156 inches) and a row spacing of 3.56 mm (0.140 inches). The unit accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). Electrical specifications include a current rating of 5 A and an insulation resistance of 5 GOhms. The connector utilizes gold-plated copper alloy contacts and a thermoplastic insulator body, operating within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-row female connector design for secure dual-edge board mating
• Low-profile insulator body constructed from thermoplastic material
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Vertical panel mounting style provides stable mechanical support

Edgeboard Connectors Applications

• Industrial control systems requiring high-density I/O connections
• Telecommunications equipment utilizing standard card edge interfaces
• Test and measurement instrumentation modules
• Embedded computing hardware with vertical board constraints

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm termination type and plating details. Ensure the target application supports the required 1.57 mm PCB thickness and 3.96 mm pitch. Confirm compliance with RoHS directives if environmental regulations apply. Cross-reference the part number with official EDAC documentation to validate availability and lead times prior to procurement.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count dual-row interface is necessary for vertical panel mounting. The 3.96 mm pitch accommodates standard board layouts while maintaining robust electrical performance. Consider the 5 A current rating for power distribution requirements. Verify that the thermoplastic housing meets the thermal and mechanical demands of the specific enclosure environment.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which offers various position counts and mounting configurations. The series is characterized by its standardized 3.96 mm spacing and compatibility with 0.062 inch thick cards. The 305-082-556-501 variant specifically addresses applications requiring 82 positions in a dual-row arrangement, providing a compact solution for dense interconnect needs.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts with identical pitch and row spacing but different position counts, such as the 305-070-556-568 or 305-054-556-278. Verify mechanical fit and pin count compatibility before substitution. Alternative manufacturers may offer similar connectors, but dimensional tolerances and termination styles must be strictly matched.
