305-084-500-207 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 84POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 305-084-500-207
- Description：CONN EDGE DUAL FMALE 84POS 0.156
- Series：305
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：42
- Number of Positions：84
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Semi Bellows
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 305-084-500-207
Edgeboard Connectors Overview

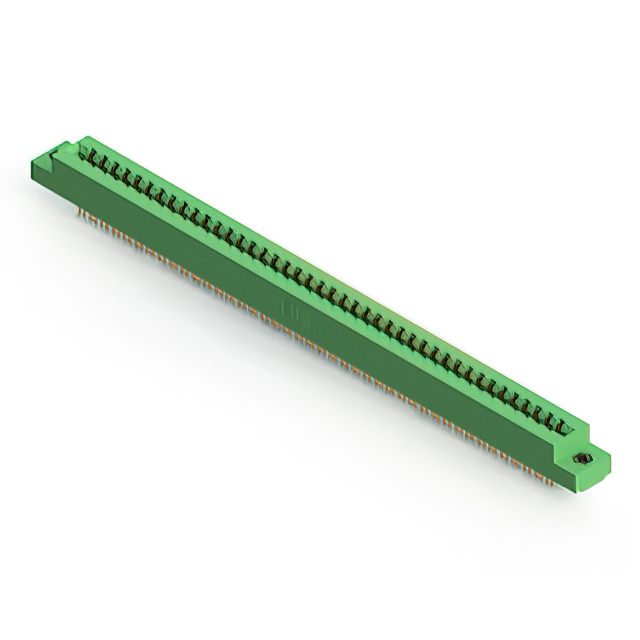

The EDAC Inc. 305-084-500-207 is a standard card edge connector featuring an 84-position dual female configuration. It utilizes a 3.96 mm (0.156 inch) pitch and is designed for vertical panel mounting. The contacts are gold-plated copper alloy, terminated via solder eyelets. The housing is constructed from green thermoplastic material. This component supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C. It provides high insulation resistance and is suitable for robust electronic interconnections.
Edgeboard Connectors Feature Summary
- Dual edge female contact configuration for secure board insertion
- Gold-plated copper alloy contacts ensuring reliable conductivity
- Vertical panel mount design with solder eyelet termination
- Thermoplastic insulator housing rated for high-temperature operation
Edgeboard Connectors Applications
- Audio/Video devices
- Digital Multimeters
- PLCs (Programming Logic Controllers)
- RADAR processing systems
Edgeboard Connectors Procurement Notes
Verify the specific manufacturer designation when sourcing this component, as some listings may attribute it to Mercury United Electronics while others cite EDAC Inc. Confirm that the part number corresponds to the 84-position variant with the specified 0.156-inch pitch. Ensure compatibility with existing panel cutouts and board thickness requirements before procurement.
Edgeboard Connectors Selection Notes
Select this connector for applications requiring a high-density interface with a 3.96 mm pitch. The dual-row female design accommodates double-sided edge cards. Consider the vertical mounting style and solder lug termination method for PCB integration. Verify that the operating temperature range meets the environmental demands of the target application.
Edgeboard Connectors Part Context
This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and row configurations. The 305-084-500-207 specifically addresses needs for 84-position interfaces. It is part of a broader family including variants like the 305-032-500-207 and 305-072-520-504, differing primarily in contact count and specific termination details.
Edgeboard Connectors Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other EDAC 305 series parts for similar pitch and position counts if exact matches are unavailable.
