305-084-500-503

Edgeboard Connectors Overview

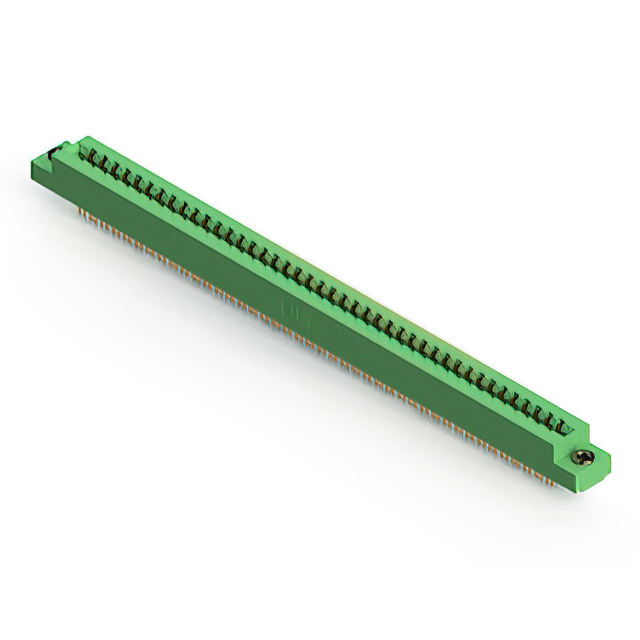

The EDAC Inc. 305-084-500-503 is a standard card edge connector from the 305 series, designed for dual-edge board applications. It features 84 positions with a contact spacing of 3.96 mm (0.156 inches) and a row spacing of 3.56 mm (0.140 inches). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). Constructed with copper alloy contacts featuring gold plating, it supports a current rating of 5 A. The housing utilizes thermoplastic material, providing an insulation resistance of 5 GOhms. Operating temperatures range from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual female configuration accommodates double-sided card edge PCBs
• Low profile insulator body design for compact integration
• Gold-plated copper alloy contacts ensure reliable conductivity
• Panel mount installation style with vertical orientation

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplane interconnects
• Computing hardware module attachment points
• Test and measurement instrument signal routing

Edgeboard Connectors Procurement Notes

Verify that the specific ordering suffix matches the required termination type and contact finish specifications. Confirm panel mounting requirements align with the vertical installation angle. Ensure the target PCB thickness corresponds to the 1.57 mm acceptance criteria. Check regional availability status as distribution may vary by location. Validate RoHS compliance documentation if environmental regulations apply to the assembly.

Edgeboard Connectors Selection Notes

Select this component when dual-edge connectivity is required for high-density signal routing. The 3.96 mm pitch suits applications needing robust mechanical stability. Verify that the 5 A current rating meets the electrical load requirements. Consider the operating temperature range for environmental suitability. Ensure the panel mount style fits the enclosure design constraints compared to PCB mount alternatives.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options. Similar models include 305-040-500-502 and 305-038-520-502, which share the same pitch but differ in position count. The 305 series is characterized by its low-profile thermoplastic housing and reliable gold-plated contact systems for industrial use.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the 305 series include 305-084-500-278, which shares the 84-position count and 3.96 mm pitch but differs in termination style. Cross-series replacements require verification of pitch and row spacing compatibility. Ensure mechanical dimensions and mounting styles match the existing design before substitution.
