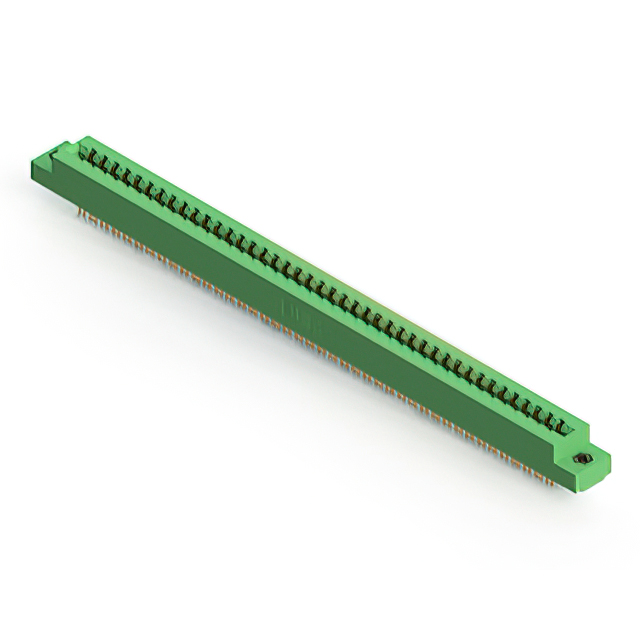

305-084-500-507 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 84POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 305-084-500-507
- Description：CONN EDGE DUAL FMALE 84POS 0.156
- Series：305
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：42
- Number of Positions：84
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Semi Bellows
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 305-084-500-507
Edgeboard Connectors Overview
The EDAC Inc. 305-084-500-507 is a standard card edge connector from the 305 series, designed for dual-row configurations with a 3.96 mm pitch. It features 84 positions and supports a maximum operating temperature of +105°C. The connector utilizes gold-plated copper alloy contacts and a thermoplastic housing. It offers a current rating of 5 A and an insulation resistance of 5 GOhms. The unit employs solder lug termination and panel mounting style.
Edgeboard Connectors Feature Summary
- Dual-row configuration for high-density signal routing
- Gold-plated contacts ensure reliable conductivity
- Thermoplastic housing provides structural stability
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- Panel-mounted electronic assemblies
- High-reliability communication equipment
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, plating thickness, and termination type. Ensure compatibility with the target PCB card thickness and panel mounting requirements before procurement.
Edgeboard Connectors Selection Notes
Select this component when a dual-row card edge interface with a 3.96 mm pitch is required. Confirm that the application environment stays within the -40°C to +105°C operational range and meets the 5 A current rating specifications.
Edgeboard Connectors Part Context
This part belongs to the EDAC 305 series, which specializes in standard card edge connectors. The series offers various mounting options and row configurations, catering to diverse industrial and commercial electronic integration needs.
Edgeboard Connectors Replacement Considerations
Consult official EDAC cross-reference guides for verified substitutes. Ensure any replacement matches the 3.96 mm pitch, dual-row layout, and panel mounting constraints.
