305-084-520-578

Edgeboard Connectors Overview

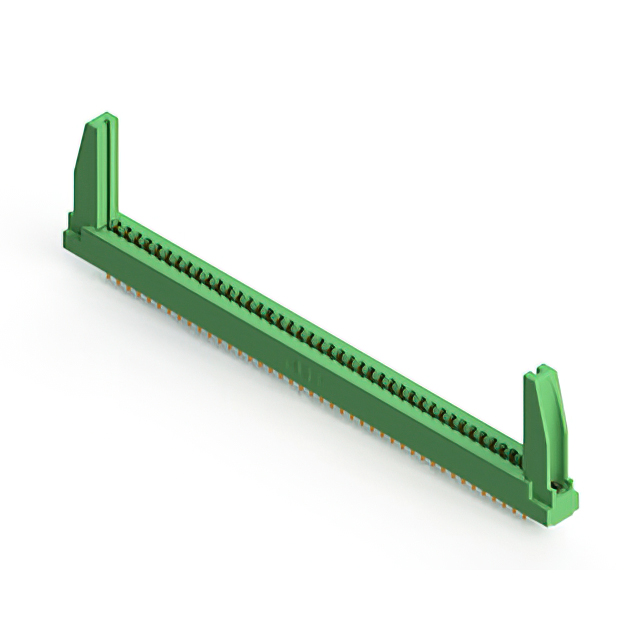

The EDAC Inc. part number 305-084-520-578 is a standard card edge connector from the 305 series, designed for dual-edge board applications. It features 84 positions with a 0.156-inch (3.96 mm) contact pitch and accepts PCB thicknesses between 0.054 and 0.070 inches (1.37 to 1.78 mm). The connector utilizes gold-plated copper alloy contacts rated for 5 A continuous current and 1800 VACrms insulation voltage. It employs a panel mount installation style with a threaded flange feature using 4-40 inserts and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure positioning
• Provides high dielectric strength with 1800 VACrms insulation rating
• Features a threaded flange design for robust panel mounting stability

Edgeboard Connectors Applications

• Industrial control systems requiring polarized card edge connections
• High-voltage signal transmission modules
• Panel-mounted electronic assemblies needing secure mechanical retention

Edgeboard Connectors Procurement Notes

Verify that the specific application requires the 305 series dual-edge configuration with 84 positions. Confirm compatibility with the specified 0.156-inch pitch and 4-40 threaded flange requirements. Ensure the operating environment remains within the -40°C to 105°C temperature range. Check for necessary polarizing key accessories if between-contact or in-contact polarization is required for the assembly.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card edge connector with a high pin count is necessary. The 305 series is suitable for applications demanding a 5 A current rating and 1800 VACrms isolation. Consider the panel mount style and threaded flange feature for installations requiring rigid mechanical fixation. Verify that the target PCB thickness falls within the 0.054 to 0.070 inch specification.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors, which are engineered for reliable interconnection in various industrial and commercial electronics. The series offers diverse position counts and mounting options, catering to both single and dual-edge board designs. The 305-084-520-578 variant specifically addresses high-density connection needs with its 84-position layout and durable construction materials.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for alternative part numbers with different position counts or flange configurations. Verify that any substitute maintains the same 0.156-inch pitch and dual-edge compatibility.
