305-084-556-212

Edgeboard Connectors Overview

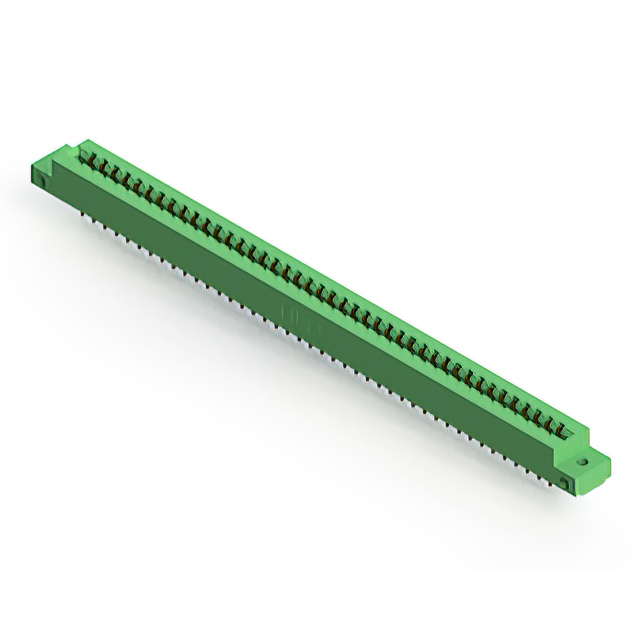

The EDAC Inc. 305-084-556-212 is a standard card edge connector designed for panel mount applications. It features a dual female configuration with 84 positions and a pitch of 3.96 mm (0.156 inches). The connector supports a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts with solder pin termination. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for high-density signal routing
• Straddle mount installation style ensures secure panel attachment
• Gold-plated copper alloy contacts provide reliable conductivity and corrosion resistance
• Thermoplastic polyester housing supports vertical mounting orientation

Edgeboard Connectors Applications

• Industrial control systems requiring robust panel-mounted interfaces
• Telecommunications equipment utilizing standard card edge modules
• Test and measurement devices needing high-reliability connections
• Automotive electronics assemblies with strict environmental tolerances

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffixes to ensure correct contact plating and housing color specifications. Confirm that the target application requires a dual-row female connector with a 3.96 mm pitch. Check regional availability as distribution status may vary by location. Ensure compatibility with the specific PCB thickness of 1.57 mm before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count interface is required for panel-mounted card edge applications. The 84-position count supports complex signal routing in compact spaces. Choose this model if straddle mount stability is preferred over surface mount alternatives. Verify that the 5 A current rating meets the electrical requirements of the connected circuitry.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting options for diverse electronic assembly needs. The 305 series is widely used in industrial and commercial applications requiring durable, high-performance interconnect solutions.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series variants for different position counts or mounting styles. Ensure substitute parts maintain the same 3.96 mm pitch and dual-row female configuration. Verify mechanical dimensions and thermal ratings match the original design requirements.
