305-086-500-207

$13.24

Description：CONN EDGE DUAL FMALE 86POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:de9c7e61cfb6 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-086-500-207 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 86POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-086-500-207

Description：CONN EDGE DUAL FMALE 86POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：43
Number of Positions：86
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-086-500-207

305-086-500-207

Edgeboard Connectors Overview

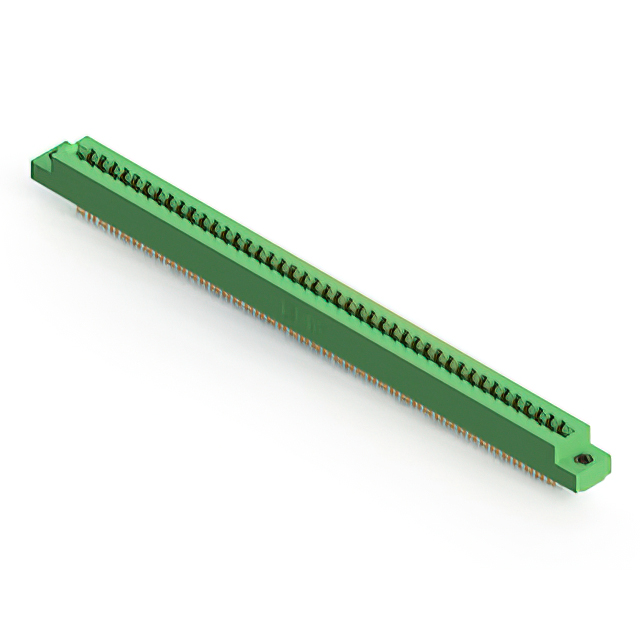

The EDAC Inc. 305-086-500-207 is a standard card edge connector receptacle featuring 86 positions with a 3.96 mm (0.156 inch) contact spacing and 3.56 mm row spacing. Designed for .062 inch nominal thickness printed circuit boards, it utilizes gold-plated copper alloy contacts and a green thermoplastic insulator body. The component supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C. It employs panel mount installation with solder eyelet termination.

Edgeboard Connectors Feature Summary

Dual female configuration designed for standard card edge insertion
Gold-plated copper alloy contacts ensure reliable signal transmission
Low profile insulator body accommodates space-constrained applications

Edgeboard Connectors Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Computing hardware module connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official manufacturer documentation to confirm exact termination style and plating specifications. Ensure compatibility with the target PCB thickness and mounting requirements before procurement. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this model when high-density connectivity is required for thick PCBs. Confirm that the application environment falls within the specified operating temperature range. Evaluate mechanical stability needs against the panel mount design constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options while maintaining consistent dimensional standards for interchangeability within industrial electronic assemblies.
