305-086-500-208

Edgeboard Connectors Overview

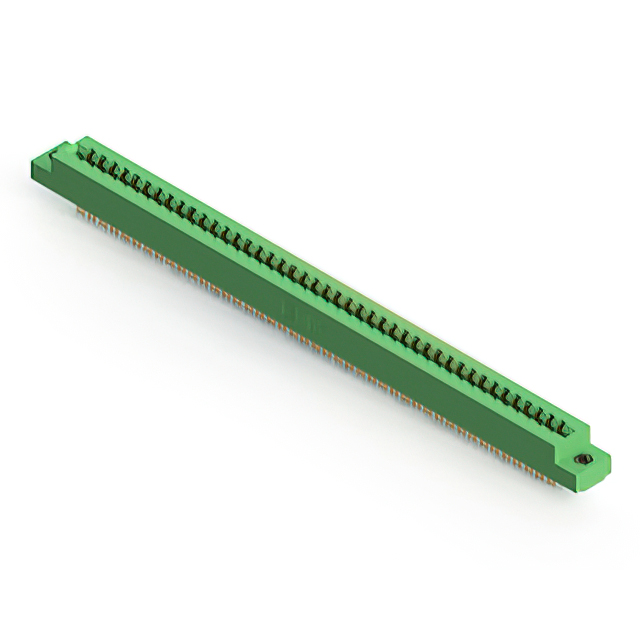

The EDAC Inc. 305-086-500-208 is a standard card edge connector receptacle from the 305 Series, featuring 86 positions with a 3.96 mm (0.156 inch) pitch. Designed for PCB mounting at a straight angle, it accommodates a board thickness of 1.57 mm (0.062 inch). The contacts are gold-plated copper alloy with a 5 A current rating, utilizing a solder termination type. The housing is green thermoplastic.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design compatible with 0.062 inch nominal thickness printed circuit boards
• Gold-plated copper alloy contacts ensure reliable electrical performance and corrosion resistance
• Straight installation style facilitates direct panel or board mounting configurations

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Telecommunications equipment backplanes
• Automotive electronic modules
• Medical device signal processing units

Edgeboard Connectors Procurement Notes

Verify the specific suffix code to confirm housing color and contact plating specifications, as variations exist within the 305 series. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure compatibility with the target PCB edge thickness of 1.57 mm to maintain mechanical stability during operation.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge receptacle with 86 positions is required for vertical or straight mounting applications. The 3.96 mm pitch suits standard board layouts. Verify that the 5 A current rating meets the system's power distribution requirements. Consider the green housing material for visual identification against other connectors in dense assemblies.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 Series of standard card edge connectors, which offers various position counts and mounting styles. The series supports both single and dual-edge configurations with consistent 0.156 inch spacing. It serves as a robust interface solution for connecting flexible or rigid PCBs in modular electronic architectures.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include EDAC 305-086-520-208 and 305-086-500-201, which share identical positional and dimensional specifications. Cross-reference datasheets to verify minor differences in housing color or terminal termination types before substitution.
