305-086-500-278

Edgeboard Connectors Overview

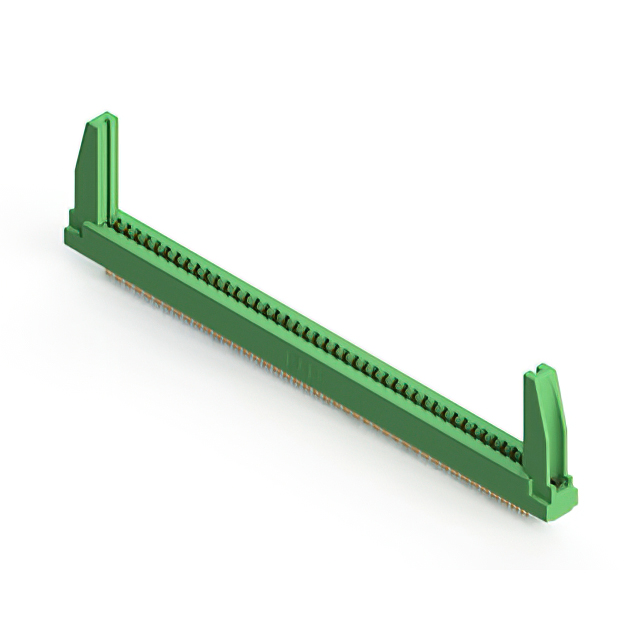

The EDAC Inc. 305-086-500-278 is a standard card edge connector receptacle from the 305 series, designed for panel mount applications. It features 86 positions arranged in a dual-row configuration with a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts and a green thermoplastic housing. It supports a continuous current rating of 5 A and is compatible with PCBs having a nominal thickness of 1.57 mm.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board insertion
• Gold-plated copper alloy contacts ensure reliable conductivity
• Thermoplastic housing provides structural integrity and insulation
• Accepts between-contact and in-contact polarizing keys

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies requiring high-density connections
• Industrial control systems utilizing standard card edge interfaces
• Test and measurement equipment with modular board architectures

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm the exact contact plating thickness and housing color variant, as these parameters define the physical characteristics of the component. Ensure that the procurement documentation explicitly references the full part number 305-086-500-278 to avoid substitution errors within the 305 series family. Cross-reference the manufacturer datasheet for precise dimensional tolerances before finalizing supply chain agreements.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 86-position interface is required for panel-mount installations. The 3.96 mm pitch accommodates standard card edge geometries, while the 5 A current rating suits moderate power distribution needs. Confirm compatibility with the target PCB thickness of 1.57 mm and verify that the application environment falls within the specified operating temperature range for thermoplastic materials.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors, which are engineered for robust performance in industrial environments. The series offers various position counts and mounting styles, providing flexibility for diverse system designs. The 305-086-500-278 specifically addresses applications needing high pin counts in a dual-row format, leveraging the series' established reliability and standardized mechanical footprint.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 305 series receptacles with matching 86-position dual-row configurations, such as 305-086-500-201 or 305-086-500-268, provided the specific suffix variations align with the required plating and housing specifications.
