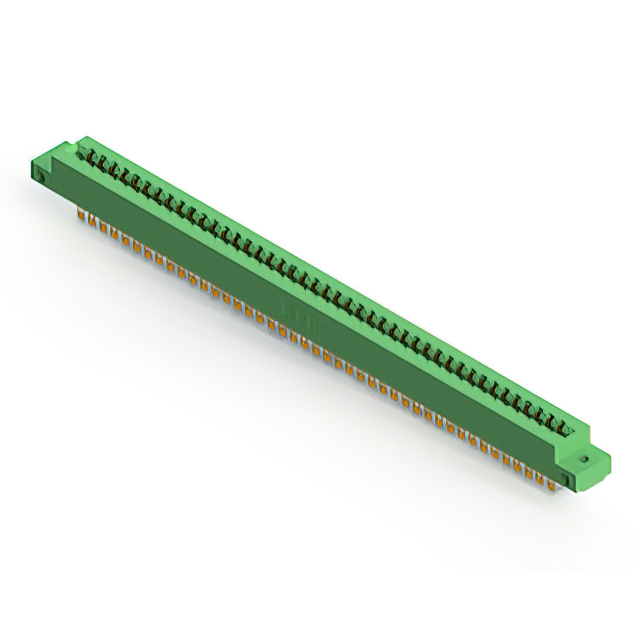

305-086-500-512

$12.58

Description：CONN EDGE DUAL FMALE 86POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Bulk

SKU:fd95b7f9deef Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-086-500-512 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 86POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-086-500-512

Description：CONN EDGE DUAL FMALE 86POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：43
Number of Positions：86
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-086-500-512

305-086-500-512

Edgeboard Connectors Overview

The EDAC Inc. 305-086-500-512 is a standard card edge connector from the 305 series, designed for high-reliability applications. It features 86 positions with a 3.96 mm (0.156 inch) pitch and supports a board thickness of 1.57 mm. This dual-edge female receptacle utilizes gold-plated copper alloy contacts to ensure stable signal transmission. The unit is rated for 5 A current and operates within a temperature range of -40°C to +105°C. It employs a solder pin termination method and is housed in green thermoplastic polyester.

Edgeboard Connectors Feature Summary

Dual-edge female configuration for secure card insertion
Gold-plated copper alloy contacts for corrosion resistance
Vertical panel mount installation style
Thermoplastic polyester housing for durability

Edgeboard Connectors Applications

Industrial control systems requiring robust interconnects
Telecommunications equipment backplanes
Automotive electronic modules
Medical device circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact plating thickness, housing color, and termination type. Ensure compatibility with the target PCB stack-up and mating card dimensions before procurement. Confirm RoHS compliance status through the manufacturer's latest datasheet or certification documents.

Edgeboard Connectors Selection Notes

Select this component when a high-density connection with 86 positions is required. The 3.96 mm pitch accommodates standard double-sided PCB layouts. Verify that the application environment stays within the specified -40°C to +105°C operating range. Ensure the mating card thickness matches the 1.57 mm specification for proper contact engagement.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles. The 305-086-500-512 specifically addresses needs for dual-edge connectivity with high pin counts. It serves as a reliable interface solution for rigid printed circuit boards in demanding environments.
