305-086-520-201

Edgeboard Connectors Overview

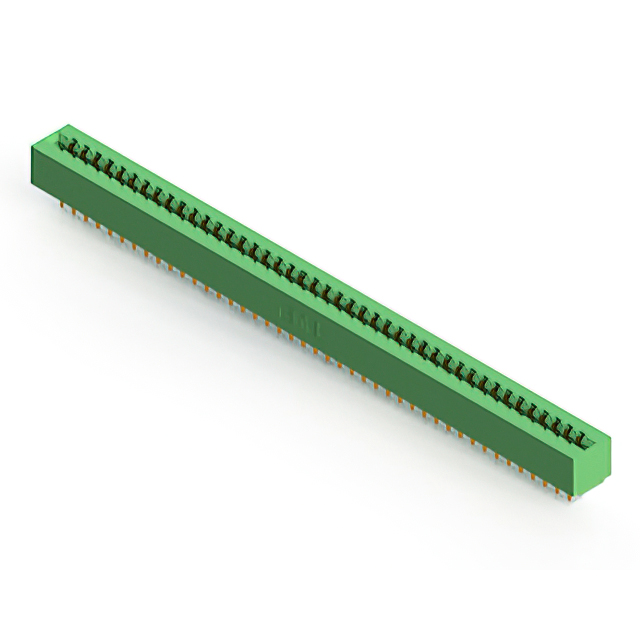

The EDAC Inc. 305-086-520-201 is a standard card edge connector receptacle featuring 86 positions with a 0.156-inch (3.96 mm) pitch. Designed for dual-edge cards, it supports board thicknesses of 0.054 to 0.070 inches (1.37 to 1.78 mm). The connector utilizes gold-plated copper alloy contacts and thermoplastic insulation, rated for 5 A current at temperatures ranging from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy contacts ensure reliable conductivity
• Thermoplastic housing provides durable electrical insulation

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Computing hardware module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact plating thickness and housing color specifications. Ensure compatibility with target PCB panel mounting requirements and verify RoHS compliance status prior to final procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a high-density 86-position interface is required for dual-edge circuit boards. Confirm that the 0.156-inch pitch aligns with existing design constraints and that the vertical panel mount style fits the enclosure geometry.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and pitch options, providing modular connectivity solutions for diverse electronic applications requiring robust mechanical and electrical performance.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series variants such as 305-086-520-202 for potential housing color differences. Verify dimensional drawings to ensure mechanical interchangeability with existing panel cutouts and mating card specifications.
