305-086-520-212

Edgeboard Connectors Overview

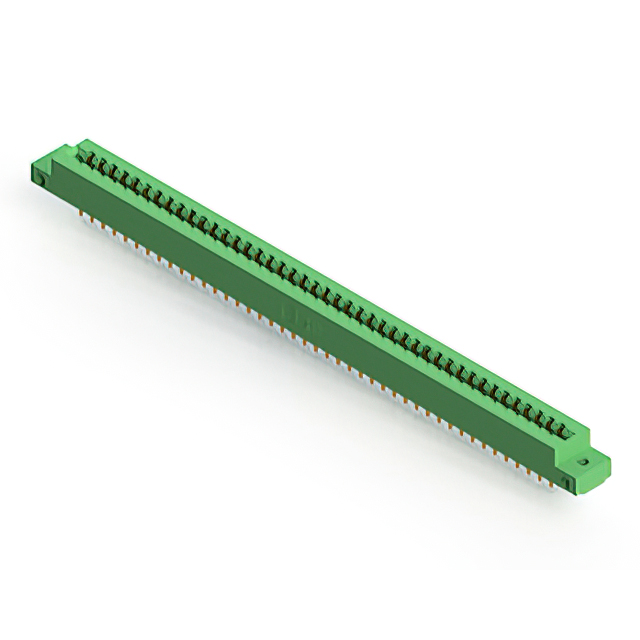

The EDAC Inc. 305-086-520-212 is a standard card edge connector from the 305 series, designed for vertical panel mount installation. It features 86 positions with a 3.96 mm (0.156 inch) pitch and supports dual-edge card types. The connector utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing. It is rated for 5 A continuous current and offers an insulation resistance of 5 GOhms. The unit accepts PCBs with a thickness of 1.57 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Vertical panel mount design for secure structural integration
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Dual-edge configuration accommodates non-specified card edge boards
• Thermoplastic polyester housing provides thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Communication equipment backplanes
• Medical device circuit board interfaces
• Energy sector monitoring hardware

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact plating thickness and housing color specifications. Ensure the target application matches the 1.57 mm board thickness requirement. Confirm RoHS compliance status through official documentation prior to final procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a vertical panel mount interface with 86 positions is required. The 3.96 mm pitch suits applications needing robust mechanical retention. Verify that the mating card edge board thickness aligns with the 1.57 mm specification to ensure proper contact engagement and electrical continuity.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series is characterized by its use of thermoplastic polyester materials and gold-plated contacts. It serves as a reliable interconnect solution for various electronic assemblies requiring durable panel-mounted connections.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC catalog for direct substitutes within the 305 series. Verify compatibility regarding position count, pitch, and mounting style before considering alternative part numbers.
