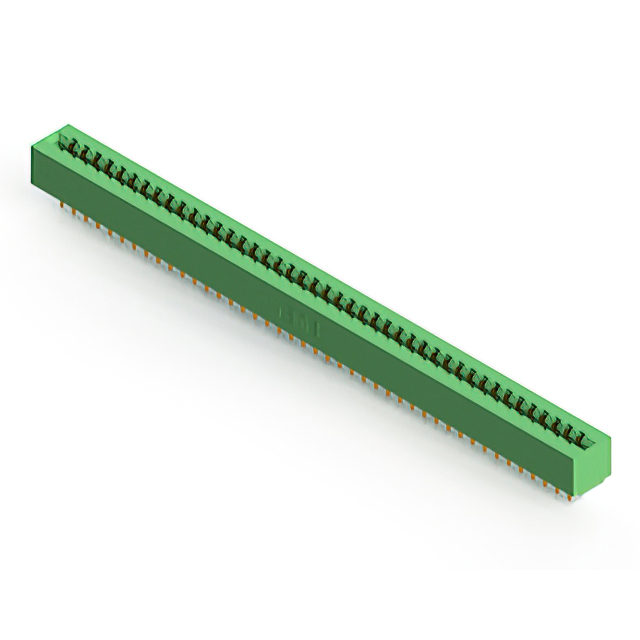

305-086-520-501 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 86POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 305-086-520-501
- Description：CONN EDGE DUAL FMALE 86POS 0.156
- Series：305
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：43
- Number of Positions：86
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Semi Bellows
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 305-086-520-501
Edgeboard Connectors Overview
The EDAC 305-086-520-501 is a standard card edge connector receptacle featuring 86 positions with a 3.96 mm pitch. It supports a 1.57 mm board thickness and utilizes gold-plated copper alloy contacts for reliable signal transmission. The component offers a 5 A current rating and accepts between-contact and in-contact polarizing keys. Designed for panel or PCB mounting, it provides secure interconnection in high-density applications.
Edgeboard Connectors Feature Summary
- Accepts between-contact and in-contact polarizing keys for precise alignment
- Gold-plated copper alloy contacts ensure durable electrical performance
- Supports dual edge female configuration for robust card retention
Edgeboard Connectors Applications
- Computing and storage systems
- Medical equipment interfaces
- Industrial control panels
- Communications network hardware
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness, housing material color, and mounting style variations. Ensure compatibility with target PCB thickness of 1.57 mm and required polarizing key configurations before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this model when high pin counts are required with standardized 3.96 mm spacing. Confirm that the application environment remains within the specified thermal limits and that the vertical or straight mounting orientation aligns with the mechanical assembly constraints.
Edgeboard Connectors Part Context
This component belongs to the EDAC 305 series, which specializes in standard card edge connectors for rack and panel applications. The series is designed for computing, medical, aerospace, and industrial sectors, offering diverse positioning options and mounting styles to meet complex interconnect requirements.
Edgeboard Connectors Replacement Considerations
Cross-reference part numbers within the EDAC 305 series for alternative position counts or mounting angles. Verify that any substitute maintains the 3.96 mm pitch and 1.57 mm board thickness compatibility to ensure mechanical fit.
