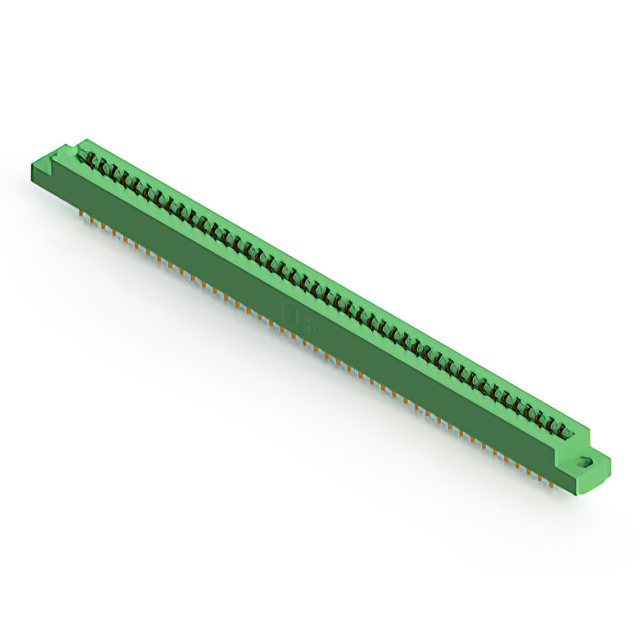

305-086-520-504

$11.48

Description：CONN EDGE DUAL FMALE 86POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:4006adef42b7 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-086-520-504 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 86POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-086-520-504

Description：CONN EDGE DUAL FMALE 86POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：43
Number of Positions：86
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-086-520-504

305-086-520-504

Edgeboard Connectors Overview

The EDAC 305-086-520-504 is a standard card edge connector from the 305 series, designed for dual-edge PCB insertion. It features 86 positions with a 3.96 mm (0.156 inch) pitch and supports board thicknesses of 1.57 mm. The connector utilizes gold-plated copper alloy contacts rated for 5 A continuous current. Constructed with a green thermoplastic housing, it employs solder pin termination for secure mounting.

Edgeboard Connectors Feature Summary

Dual-edge female contact configuration for robust board retention
Gold-plated copper alloy contacts ensure reliable signal transmission
Thermoplastic housing provides structural integrity and insulation

Edgeboard Connectors Applications

Industrial control systems requiring high-density interconnects
Telecommunications equipment backplanes
Automotive electronic modules

Edgeboard Connectors Procurement Notes

Verify the complete part number against official EDAC documentation to confirm specific plating thickness and material certifications. Ensure compatibility with target PCB stack-up dimensions before procurement. Cross-reference RoHS compliance status with the latest manufacturer datasheet to meet regulatory requirements for the intended deployment region.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count interface with a 3.96 mm pitch is required. The dual-edge design offers superior mechanical stability compared to single-edge variants. Verify that the application environment remains within the specified operating temperature range and that the 5 A current rating aligns with the system's electrical load requirements.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which specializes in standard card edge solutions. The series is characterized by its consistent 3.96 mm spacing and durable construction. The 305-086-520-504 variant specifically addresses applications needing 86 connection points while maintaining the series' established reliability standards for panel-mounted installations.
