305-086-520-507

Edgeboard Connectors Overview

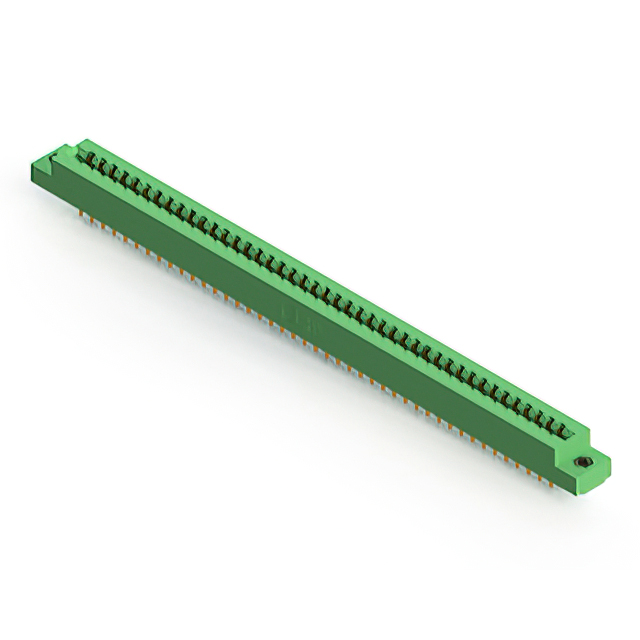

The EDAC 305-086-520-507 is a standard card edge connector receptacle from the 305 series. It features 86 positions with a 3.96 mm (0.156 inch) pitch and supports dual-row configurations. Designed for panel mount installation, it utilizes solder pin termination and gold-plated copper alloy contacts rated for 5 A current. The housing is green thermoplastic, accommodating board thicknesses of 1.37 mm to 1.78 mm, with an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration for high-density interconnect applications
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Panel mount design with threaded insert flange features for secure attachment

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interfaces
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact plating thickness and flange specifications. Ensure compatibility with target PCB edge thickness ranges before procurement. Confirm RoHS compliance status through manufacturer datasheets. Cross-reference lead times with authorized distributors as manufacturing schedules may vary.

Edgeboard Connectors Selection Notes

Select this component when high pin counts are required in a compact dual-row format. Verify that the 3.96 mm pitch aligns with the mating card edge layout. Ensure the panel mounting style fits the mechanical enclosure constraints. Check thermal ratings against operational environment requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles. The 305-086 variant specifically addresses high-pin-count needs within the 3.96 mm pitch family, providing a robust solution for demanding electronic interconnects.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 305 series parts with matching 86-position counts and 3.96 mm pitch. Verify identical flange dimensions and mounting hole patterns for direct mechanical replacement. Consult official cross-reference guides for equivalent industrial-grade alternatives.
