Edgeboard Connectors Overview

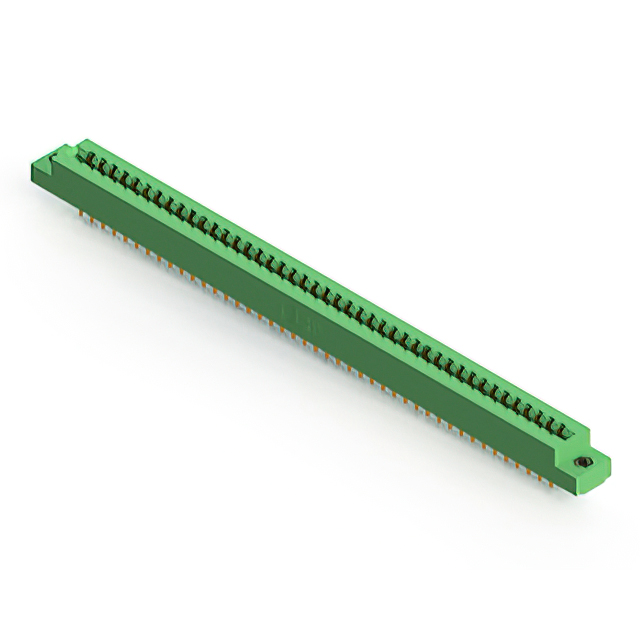

The EDAC Inc. 305-086-520-508 is a standard card edge connector featuring an 86-position dual-row configuration with a 3.96 mm pitch and 1.57 mm board thickness compatibility. It utilizes gold-plated copper alloy contacts for reliable signal transmission and offers a 5 A current rating per contact. Designed for panel mounting in a vertical orientation, the connector employs solder pin termination to secure connections to the printed circuit board. The insulator body is constructed from thermoplastic material, providing structural integrity within an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration designed for high-density interconnect applications
• Gold-plated copper alloy contacts ensure durable electrical performance
• Thermoplastic insulator body supports vertical panel mounting stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing standardized module connections
• Test and measurement instrumentation with high-pin-count requirements

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact physical dimensions and plating specifications. Ensure that the target application environment remains within the specified thermal limits and mechanical stress parameters defined by EDAC Inc. Cross-reference the component number with authorized distributors to confirm availability status and compliance with relevant regulatory standards prior to finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with a 3.96 mm pitch is required for panel-mounted installations. Consider the 86-position count and 5 A current rating to ensure adequate capacity for the intended circuit design. Evaluate the vertical mounting style and thermoplastic housing properties against the mechanical constraints of the enclosure and environmental conditions expected during operation.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 Series, which provides a range of standard card edge connectors characterized by consistent 3.96 mm spacing. The series offers various position counts and mounting configurations to accommodate diverse electronic assembly needs. The 305-086-520-508 specifically addresses applications requiring a high-density dual-row connection with reliable solder pin termination capabilities.

Edgeboard Connectors Replacement Considerations

Consult the EDAC Inc. official documentation for confirmed substitute part numbers within the same series or compatible product lines. Verify dimensional compatibility and electrical ratings before substituting any alternative components to maintain system integrity.
